1m 25mm2 3 Gauge Australian Made Welding Cable
$32.00
Product Introduction
Australian made 1m welding cable with 25mm2 (3 Gauge) 100% oxygen free copper conductors. Double insulated NBR/NBR outer shell rated to 90oC, offering excellent softness, flexibility and voltage conductivity for welding applications. Complies with AS1995:2003 standard.
Specifications
| Length | 1m |
| Cross Section | 25mm2 (3 Gauge AWG/B&S) |
| Max Current | 333 Amp (30% Duty Cycle) |
| Conductor | 100% Oxygen Free Copper |
| Insulation | Double NBR/NBR, 90oC Rated |
1m Welding Cable – 25mm2 – 3 Gauge – Solar Car Battery Stereo AUSTRALIAN MADE
Power up your welding operations with this premium Australian-made welding cable, engineered for superior performance and durability. Whether you’re a professional welder or tackling industrial projects, this cable delivers the reliability and flexibility you need to get the job done efficiently.
Core Specifications
| Description | Double-insulated welding cable with 100% oxygen-free copper conductors |
| Length | 1m |
| Cross-Section | 25mm2 (3 Gauge AWG/B&S) |
| Max Current (30% Duty Cycle) | 333 Amp |
| Insulation | NBR/NBR double insulation, V90HT rated (90oC) |
| Conductor Material | High-purity extra fine copper |
| Flexibility | Soft and flexible design for easy maneuvering |
| Compliance | AS1995:2003 standard for welding applications |
| Origin | Australian Made |
| Equivalent Part | UNIMIG WC25MM / U51026 |
Key Features & Benefits
Australian Quality Craftsmanship: Made locally with strict quality control, ensuring reliability in demanding work environments.
Enhanced Conductivity: 100% oxygen-free copper conductors minimize voltage drop, delivering consistent power to your welding equipment.
Extreme Flexibility: Extra fine copper strands and soft insulation allow easy bending around workpieces, reducing operator fatigue.
Heat & Chemical Resistance: V90HT rated insulation withstands high temperatures (90oC) and resists oils, acids, and abrasion.
Heavy-Duty Performance: Engineered for 333 Amp max current (30% duty cycle), suitable for industrial welding tasks.
Applications
Ideal for MIG, TIG, and arc welding applications in workshops, construction sites, automotive repair, and solar/battery systems. Perfect for connecting welders to power sources or battery setups requiring high current transmission.
Quality Assurance
Complies with AS1995:2003 standards, ensuring safety and performance. Each cable undergoes rigorous testing to meet industrial-grade requirements, backed by Australian manufacturing expertise.
Differentiation
Unlike generic cables, this product combines Australian-made durability with extra fine copper conductors for unmatched flexibility and conductivity. Its double insulation offers superior protection compared to single-layer alternatives, making it a long-term investment for professionals.
FAQ
Q: What is the maximum temperature rating?
A: 90oC (V90HT rated), suitable for high-heat welding environments.
Q: Can this cable be used for battery connections?
A: Yes, its high conductivity makes it ideal for solar car battery and stereo systems.
Q: Is it compatible with UNIMIG welders?
A: Yes, it is equivalent to UNIMIG part # WC25MM / U51026.
Q: Does the cable come with certification?

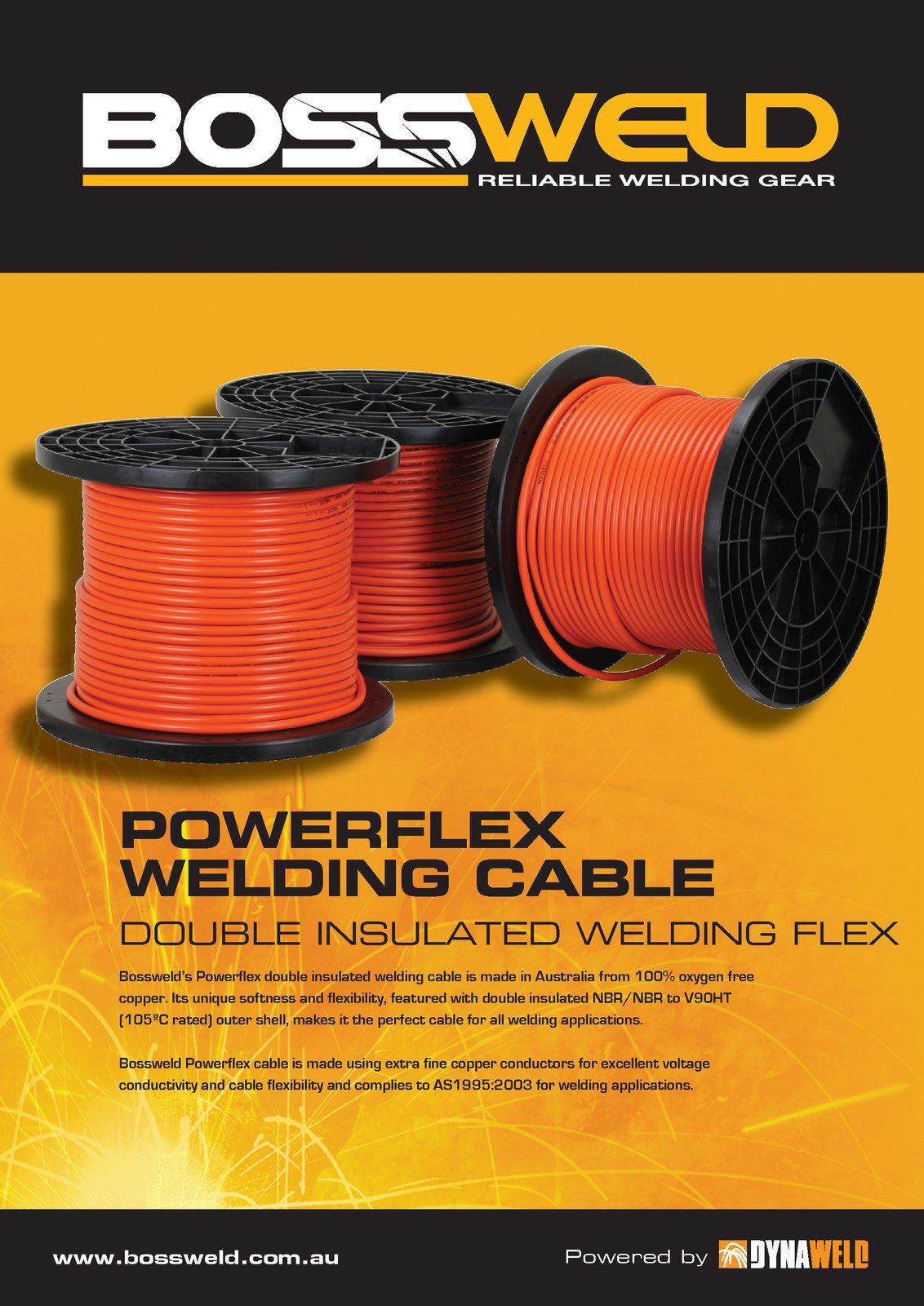

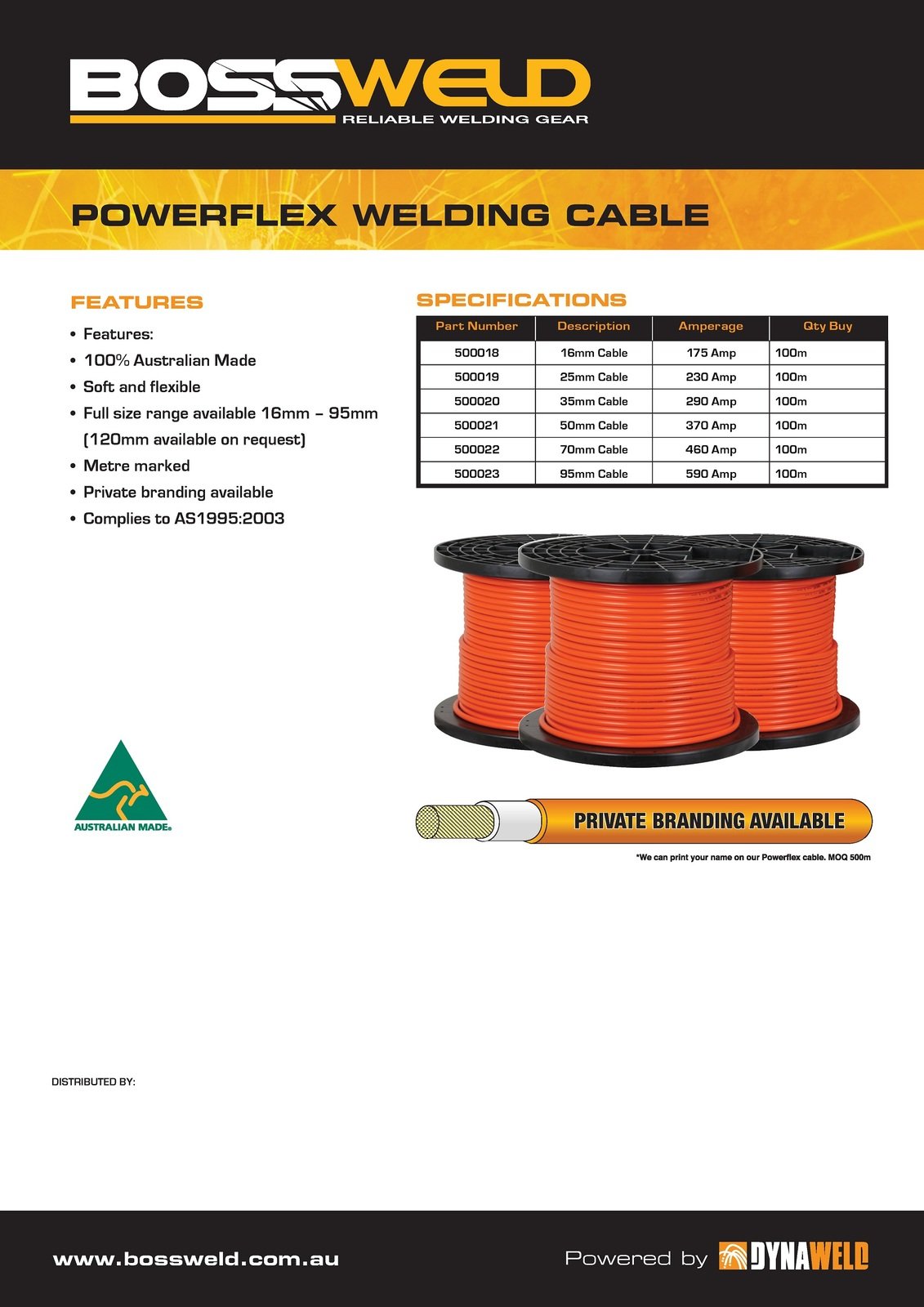

A: Yes, it complies with AS1995:2003 standards (see photos for spec sheets).
Ready to upgrade your welding setup? Contact us today for a quote or technical support! Our team of experts is here to help you find the perfect cable solution for your needs.
