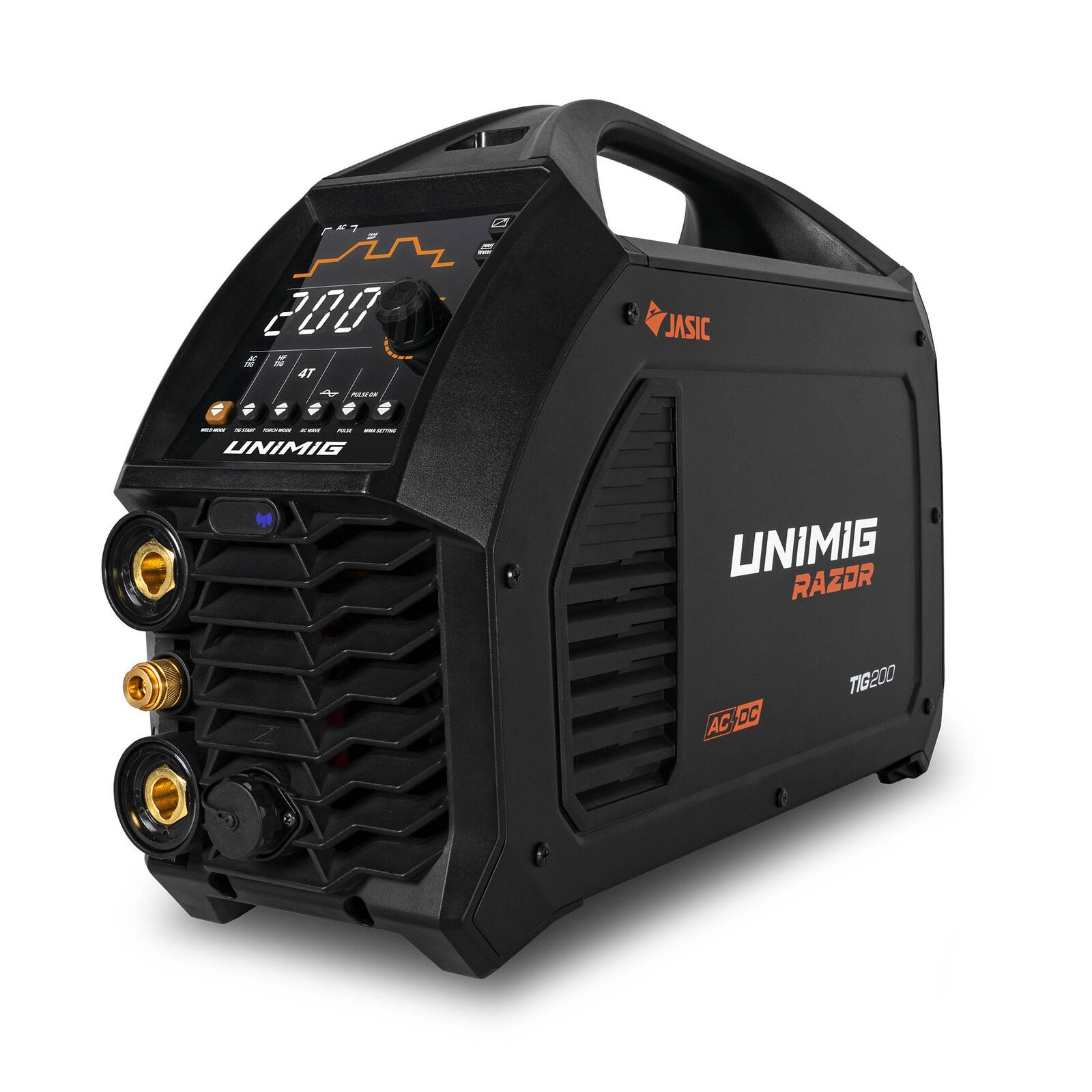

UNIMIG Razor ACDC 200A TIG Welder U12002K Digital Pulse
$2,079.00
Product Introduction
The UNIMIG Razor Digital Pulse ACDC 200 Amp Inverter TIG Welder offers full control over High Frequency AC/DC TIG welding with Pulse TIG functions. It features the ARC TORCHOLOGY T2 TIG Torch and supports remote foot control for versatility, suitable for various materials like Aluminium, Stainless Steel, and Mild Steel.
Key Specifications
| Input Voltage | 240V Single Phase |
| Output Current Range | 5-200A (TIG), 20-160A (MMA) |
| Functions | AC/DC HF TIG, Pulse TIG, MMA |
| Duty Cycle @ 40¡ãC | 20% @ 200A (TIG), 15% @ 160A (MMA) |
| Weight | 11.7kg |
UNIMIG Razor Digital Pulse ACDC 200 Amp Inverter TIG Welder U12002K: Precision Welding Redefined
Why Choose the RAZOR? 200 AC/DC?
Powered by cutting-edge 43KHz inverter technology, this 200A AC/DC TIG welder delivers professional-grade results for both TIG and MMA applications. Whether you’re working with aluminum, stainless steel, or mild steel, its advanced features like Pulse TIG and HF arc ignition ensure minimal distortion and superior weld quality¡ªperfect for thin gauge materials and intricate projects.
Core Specifications at a Glance
| Feature | Details |
|---|---|
| Welding Modes | AC/DC HF TIG, AC/DC Pulse TIG, MMA |
| Current Range | TIG: 5-200A | MMA: 20-160A |
| Duty Cycle (40¡ãC) | 20% @ 200A, 100% @ 90A (TIG) |
| Pulse Control | 0.2-200Hz frequency, 10-90% pulse width |
| Input Power | 240V Single Phase, 10AMP plug |
| Torch | ARC TORCHOLOGY T2 (30% better power-to-weight ratio) |
| Material Compatibility | Aluminum, stainless steel, mild steel, copper, titanium (TIG); mild steel, cast iron (MMA) |
| Dimensions | 500¡Á170¡Á340mm |
| Weight | 11.7kg (portable design) |
| Warranty | 5 Years (nationally recognized) |
Key Performance Advantages
- Precision Control: Adjust pre/post gas time, start/finish current, and slope settings for flawless welds.
- Pulse TIG Technology: Minimizes heat input to prevent warping on thin materials.
- HF Arc Ignition: Starts arcs without tungsten/workpiece contact, reducing contamination.
- Foot Control Ready: Hands-free amperage adjustment for uninterrupted torch movement.
Applications & Versatility
Ideal for automotive repairs, fabrication, aerospace, and DIY projects. Supports welding thicknesses from 1-8mm (TIG) and 2-10mm (MMA), making it suitable for both hobbyists and professionals.
What¡¯s Included?
– RAZOR TIG 200 AC/DC Welder
– 8m T2 TIG Torch
– 4m Electrode Holder & Earth Clamp
– Argon Flowmeter Regulator & 1.8m Gas Hose
– Operating Manual
Quality You Can Trust
Backed by a 5-year warranty and compliant with AS/NZ60974-1 standards, the RAZOR? 200 AC/DC ensures durability and reliability for years of heavy use.
FAQ
Q: Can I use this welder with a generator?
A: Yes, a minimum 8.0kVA generator is required.
Q: What materials can I weld with TIG?
A: Aluminum, magnesium, stainless steel, copper, titanium, and more.
Q: Is the foot control included?
A: No, it¡¯s sold separately but compatible via the machine¡¯s foot control connection.
Ready to Elevate Your Welding?
Experience unmatched precision and versatility. Contact us today for pricing and availability!
