UNIMIG Razor 250 Compact MIG TIG MMA Welder U11010K
$2,599.00
Product Description
The UNIMIG Razor 250 Compact is a 240V inverter-based multi-function welder with MIG, TIG (Lift Arc), and MMA capabilities. It features stepless voltage/wire feed control, 4-geared wire drive, and solid metal construction, ideal for home workshops, maintenance, and industrial applications.
Key Specifications
| Welding Processes | MIG (Gas/Gasless), TIG, MMA |
| Current Range | 30-250A (MIG/TIG), 20-220A (MMA) |
| Duty Cycle | 20%@250A, 60%@144A, 100%@112A |
| Wire Size | 0.6-1.2mm (MIG) |
| Weight/Dimensions | 41.3kg, 900¡Á480¡Á760mm |
UNIMIG Razor 250 Compact MIG Multi-Function Welder – TIG – MMA – U11010K
Experience professional-grade welding versatility with the UNIMIG Razor 250 Compact Welder. This inverter-based machine combines MIG, TIG, and MMA capabilities in a portable design, perfect for workshops, job sites, and home use. Whether you’re working with mild steel, stainless steel, or aluminum, its stepless voltage/wire feed control and industrial-grade features deliver precise, high-quality results every time.
Core Specifications
| Functionality | MIG (Gas/Gasless), DC TIG (Lift Arc), MMA |
| Current Range | MIG: 30-250A | TIG: 5-250A | MMA: 20-220A |
| Wire Compatibility | 0.6-1.2mm (MIG); 5kg/15kg spools |
| Input Power | 240V single phase, 15AMP plug (user-installed) |
| Duty Cycle (40¡ãC) | 20%@250A, 60%@144A, 100%@112A |
| Material Compatibility | Mild steel, stainless steel, aluminum, cast iron, copper |
| Protection | VRD, Thermal Overload, IP21S rating |
| Dimensions | 900¡Á480¡Á760mm |
| Weight | 41.3kg |
| Warranty | 5-year national warranty |
What’s Included

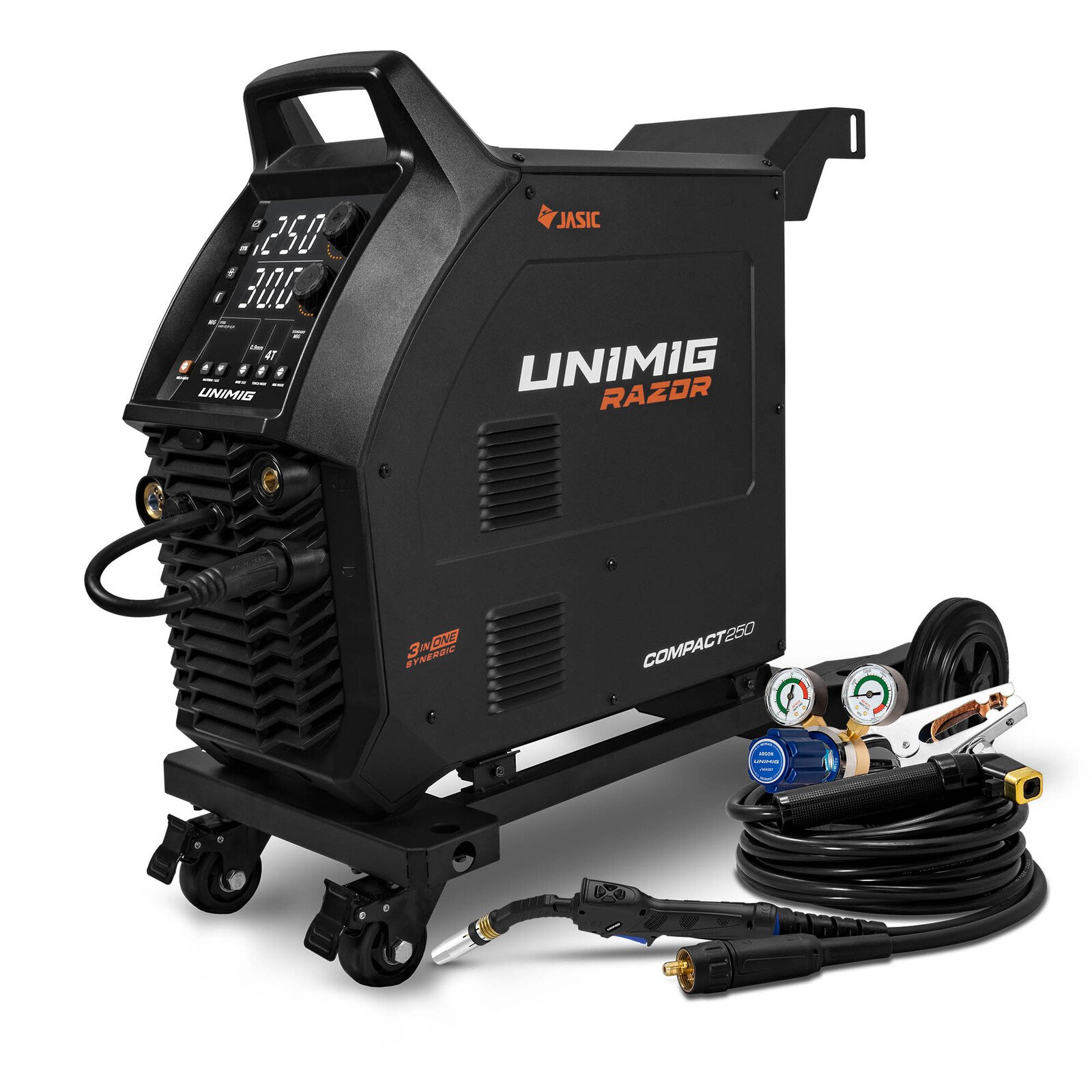

- RAZOR COMPACT 250 Welder

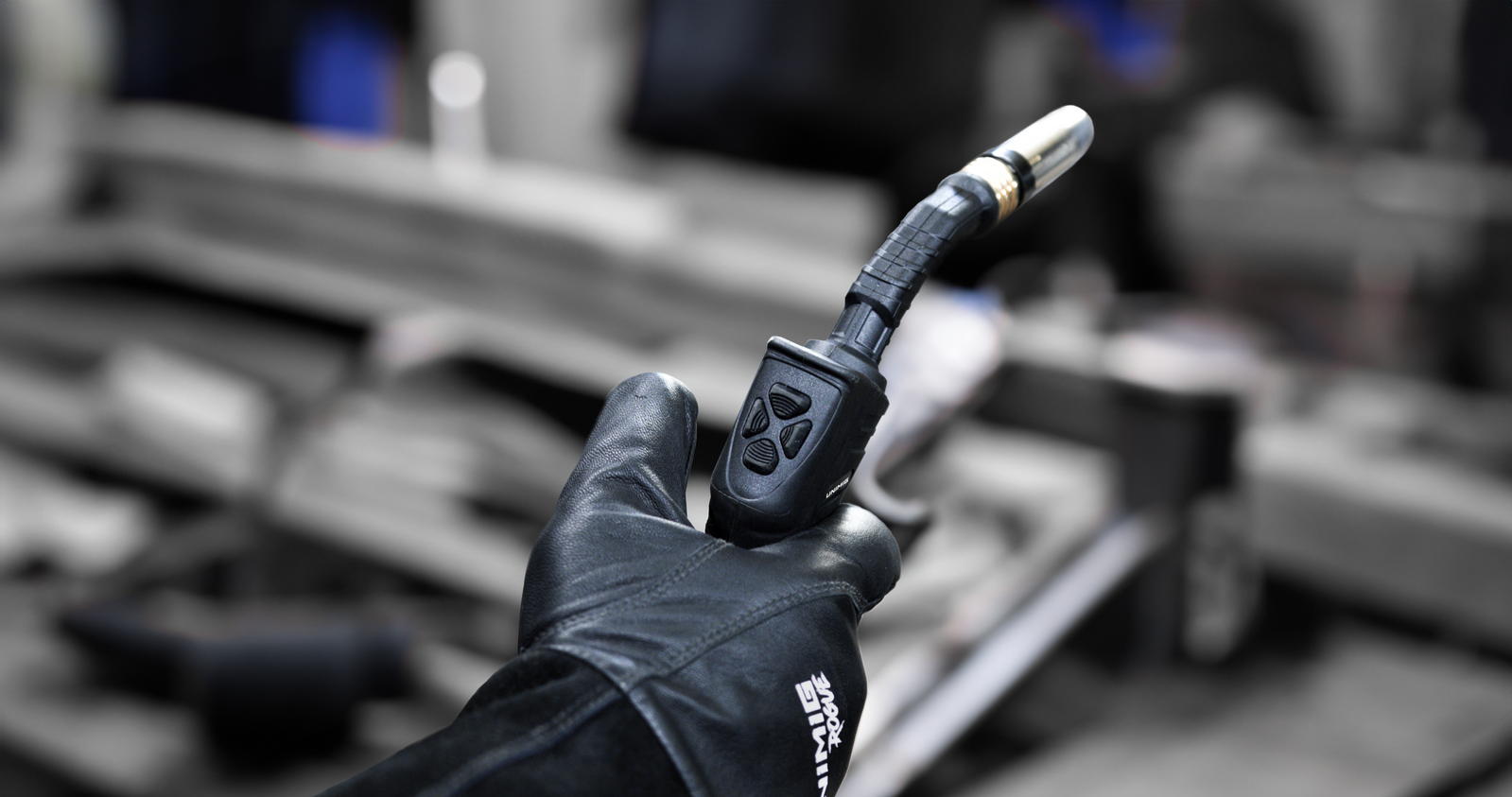

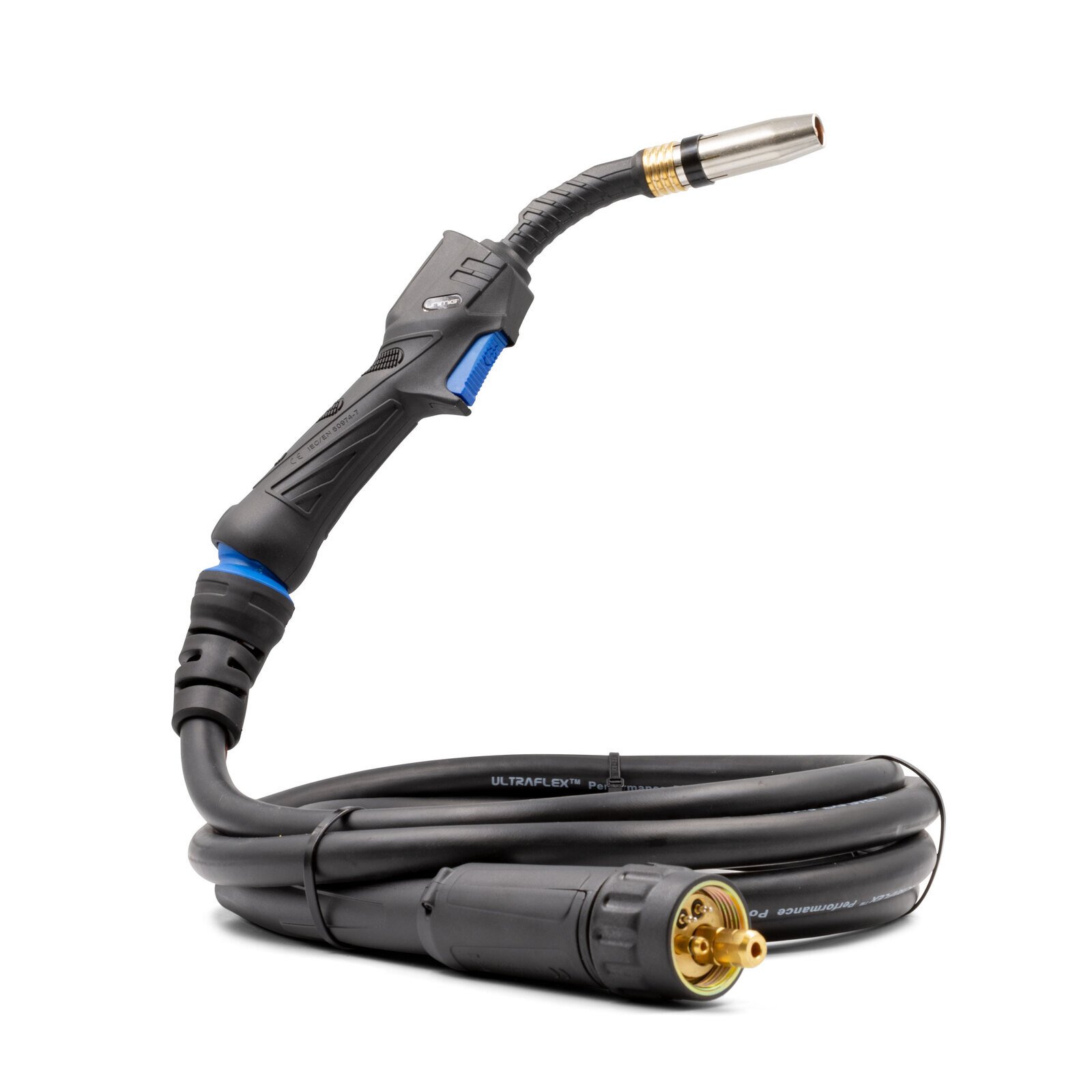

- 4m M24 Digital MIG Torch

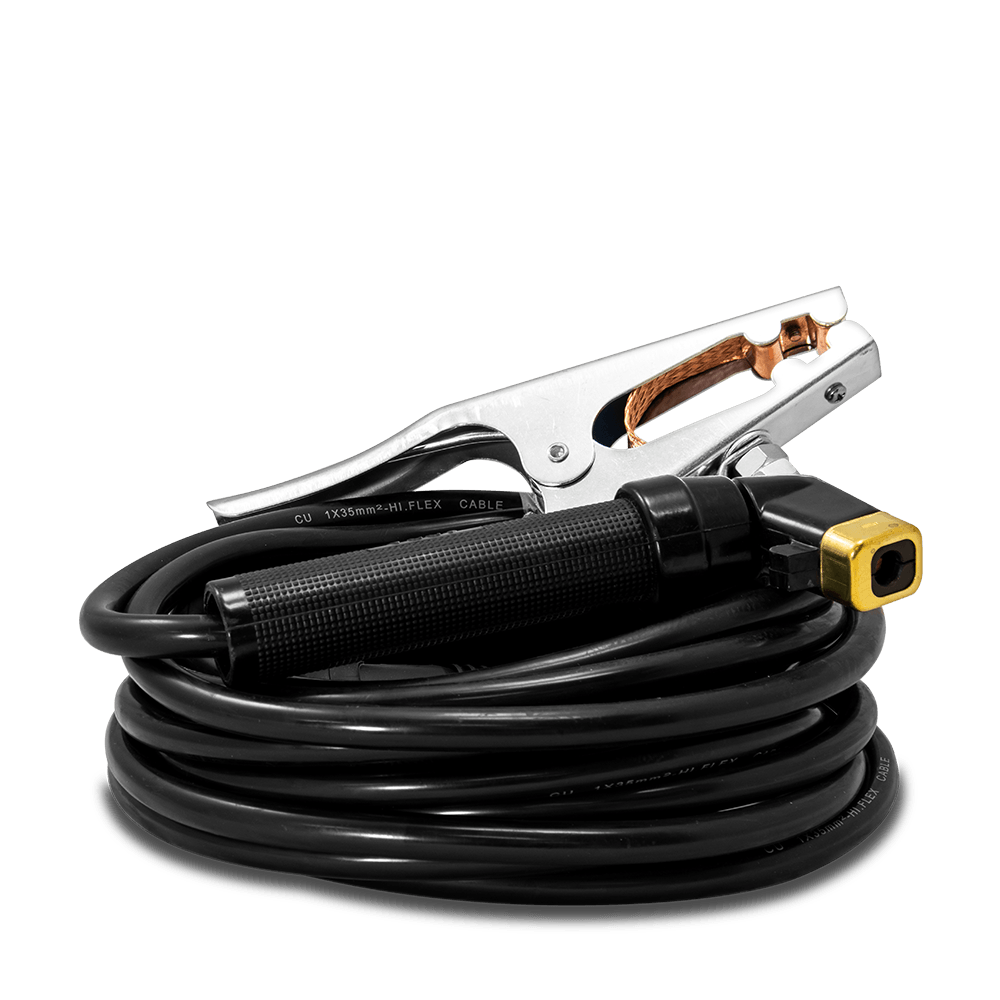

- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead

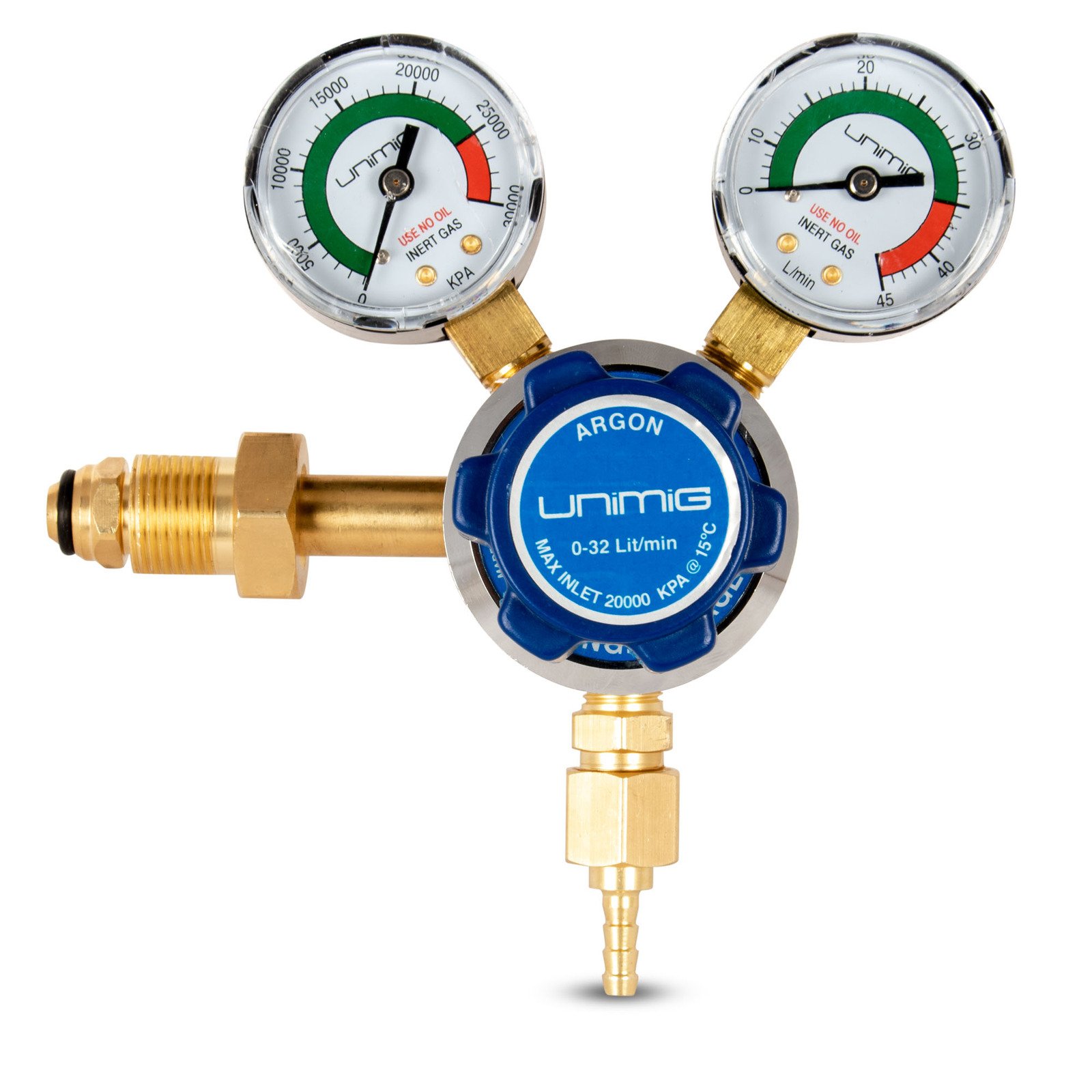

- Twin Gauge Argon Regulator
- 1.8m Gas Hose with fittings
- Operating Manual & 3 drive rollers (0.8-1.2mm)
Key Features & Benefits

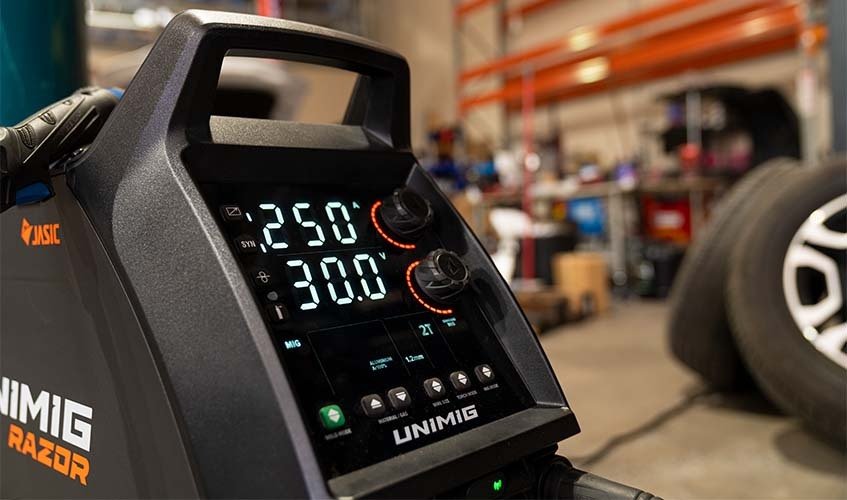

Multi-Process Versatility: Seamlessly switch between MIG (gas/gasless), TIG (Lift Arc), and MMA for diverse projects. Industrial Performance: IGBT inverter technology ensures stable arcs, while 4-geared wire drive guarantees smooth wire feeding. User-Friendly Design: Stepless controls, burnback adjustment, and wire inch function simplify setup and reduce gas waste. Durable Construction: Solid metal case with IP21S protection for reliability in tough environments.
Applications
Ideal for general engineering, maintenance, rural workshops, panel beating, and home DIY. Handles materials from 1mm to 12mm thickness, making it suitable for automotive repairs, metal fabrication, and structural projects.
Why Choose UNIMIG Razor 250?
Unlike competitors, this welder offers spool gun compatibility for aluminum welding, inductance control for arc fine-tuning, and a 5-year warranty backed by UNIMIG’s nationwide dealer network. Its compact size (41.3kg) and 240V single-phase input ensure portability without sacrificing power.
FAQ
Q: Does it require a specific power plug? A: The machine includes a power lead but no plug; install a 15AMP plug based on your power setup.
Q: Can I weld aluminum? A: Yes, with MIG (using appropriate wire/gas) or optional spool gun.
Q: Is delivery available outside metro areas? A: Free shipping to Sydney/Melbourne/Brisbane/Perth; additional charges apply for remote areas.
Ready to elevate your welding projects? Contact us today for pricing and technical support!
