Kemppi Minarc Evo 180 Amp MMAW STICK TIG Welder
$1,895.00
Product Introduction
Designed for professional welders on the move, the Kemppi Minarc Evo 180 is a versatile DC welder supporting MMA, STICK, and TIG processes. Lightweight (5.4 kg) with an impact-resistant casing, it offers excellent arc stability, reliable ignition, and flexibility with mains or generator power, ideal for on-site use.
Key Specifications
| Welding Processes | MMA, STICK, TIG |
| Max Output Current | 180 A (TIG, 35% ED); 170 A (MMA, 30% ED) |
| Input Voltage | 1~ 230 V ¡À15%, 50/60 Hz |
| Weight (no accessories) | 5.4 kg |
| Electrode Sizes | 1.5 – 4.0 mm |
Kemppi Minarc Evo 180 Amp MMAW | STICK | TIG | Caddy DC Welder

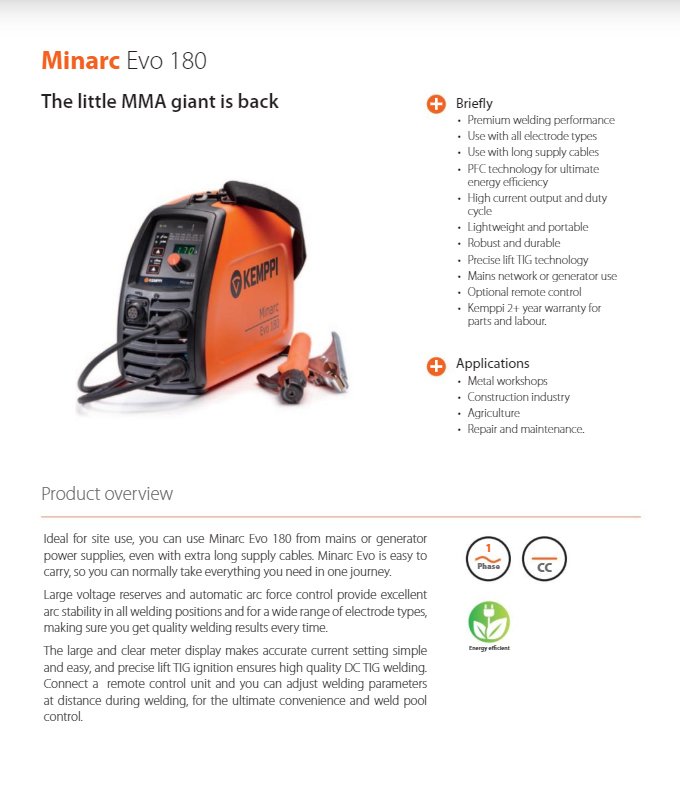

Engineered for professional welders on the move, the Kemppi Minarc Evo 180 delivers exceptional welding quality with reliable arc ignition. This compact, inverter-based welder combines MMA and TIG capabilities, ensuring high energy efficiency and maximum power for diverse job site demands.

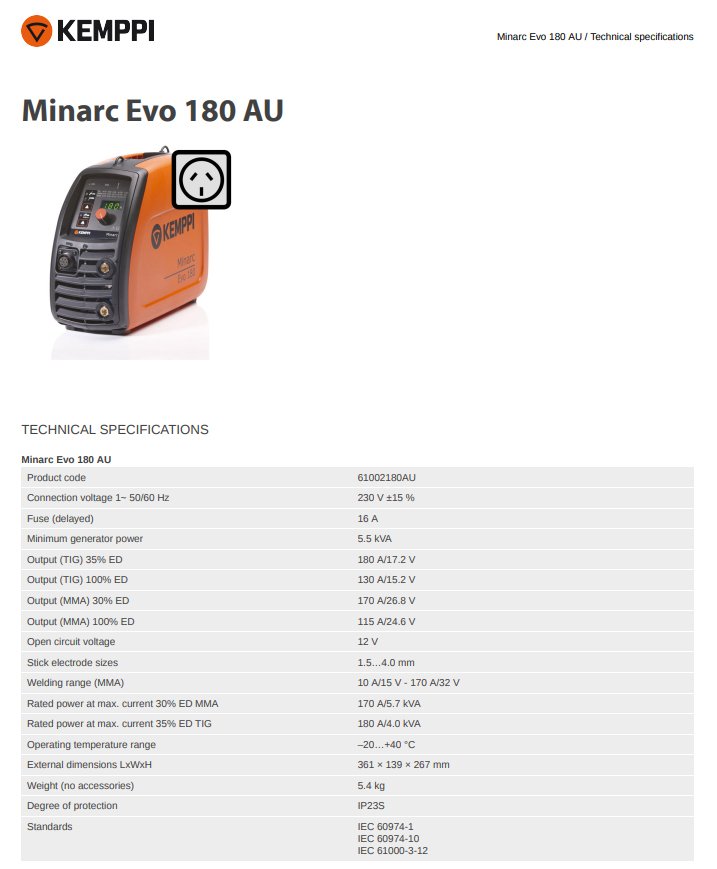

Core Specifications
| Welding Processes | MMAW (STICK), TIG |
| Max Output (TIG, 35% ED) | 180 A / 17.2 V |
| Max Output (MMA, 30% ED) | 170 A / 26.8 V |
| Stick Electrode Sizes | 1.5 ¨C 4.0 mm |
| Power Source | Mains (230V ¡À15%) or Generator (¡Ý5.5 kVA) |
| Open Circuit Voltage | 90 V (VRD 30V; AU VRD 12V) |
| Weight (no accessories) | 5.4 kg |
| Degree of Protection | IP23S |
| Operating Temp Range | ¨C20¡+40 ¡ãC |
| Dimensions (LxWxH) | 361 ¡Á 139 ¡Á 267 mm |
Key Features & Benefits
- Versatile Power Options: Works with mains, generators, or long cables¡ªideal for remote job sites.
- Portable Design: Lightweight (5.4kg) with impact-resistant casing for easy one-man transport.
- Superior Arc Performance: Stable arcs in all positions, supports 4mm electrodes, and automatic arc force control.
- Efficiency: PFC technology reduces cooling breaks, maximizing welding time.
- Safety: Reduced open circuit voltage (90V max) for damp/humid environments.
Applications
Perfect for construction, metal fabrication, maintenance, and on-site repairs. Handles mild steel, stainless steel, and other metals with precision.
Why Choose Minarc Evo 180?
Unlike competitors, this welder balances power (180A TIG) and portability (5.4kg), with IP23S protection for durability. Its Dinse 10-25 plugs and compatibility with UW17V-4MCP50-extend TIG torch enhance versatility.
FAQ
Q: Can it run on a generator?
A: Yes, requires minimum 5.5 kVA generator power.
Q: What electrode sizes does it support?
A: 1.5mm to 4.0mm stick electrodes.
Q: Is it suitable for outdoor use?
A: IP23S rating protects against dust and water spray, ideal for job sites.
Ready to elevate your welding efficiency? Contact us for pricing and technical support today!
