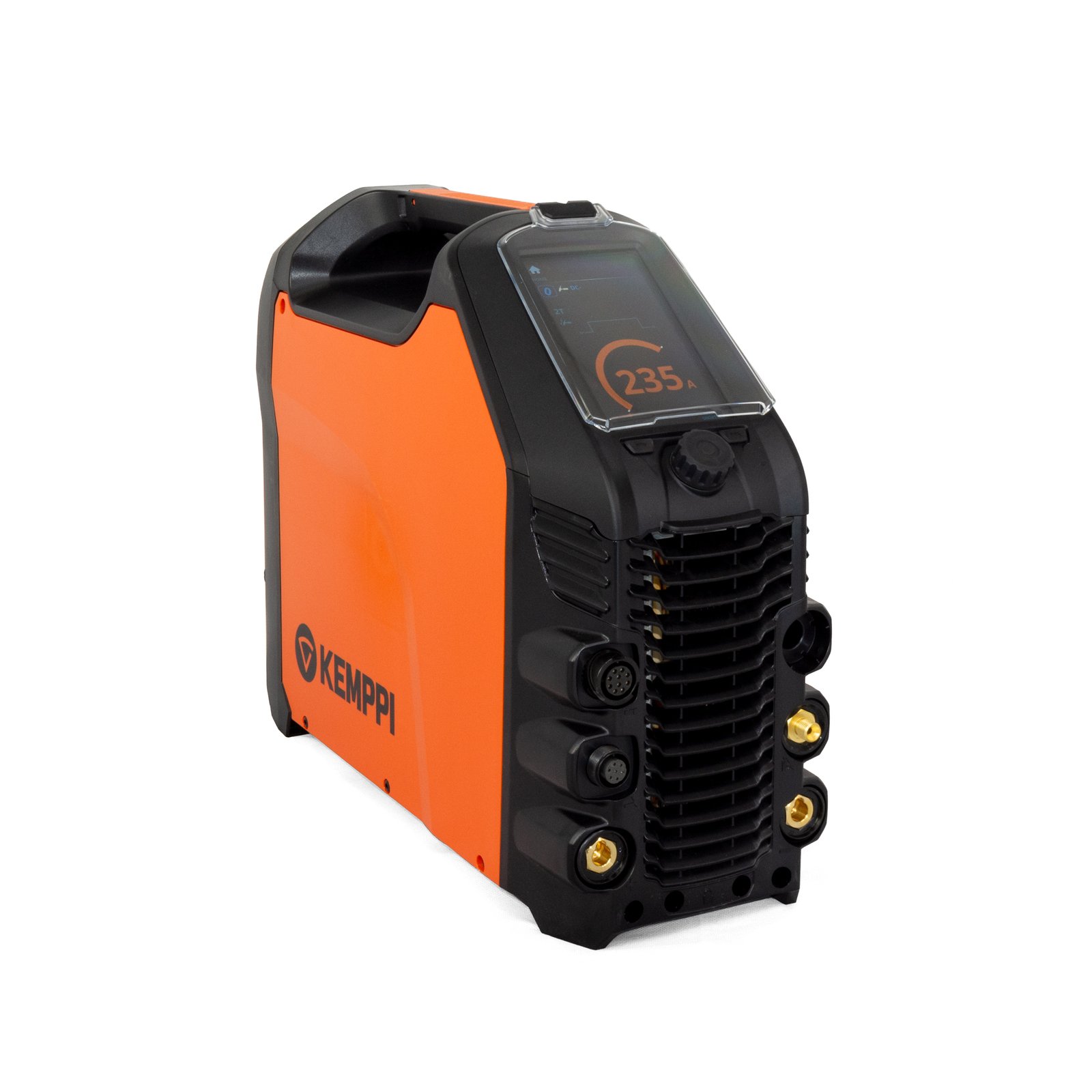

Kemppi MasterTig 235 ACDC TIG Welder Gas Cooled MPT35X
$7,400.00
Product Introduction
A professional AC/DC TIG welder with 230A output, ideal for precise welding. Features Double Pulse, Optima AC waveform, and MicroTack. Compact, durable design with gas-cooled torch, suitable for Australian market.
Specifications
| Output Current | 230A |
| Voltage | 1~ 110/240V ¡À10% |
| Torch | TX225G8 8m gas-cooled |
| Weight | 19.1kg |
| Standards | IEC 60974, AS 60974.1-2006 |
Kemppi MasterTig 235 ACDC TIG Welder – Gas Cooled with MPT35X Panel
Experience professional-grade TIG welding with the Kemppi MasterTig 235 ACDC, engineered for precision, efficiency, and durability. Whether you’re working on thin sheets or heavy-duty projects, this welder delivers superior weld quality while reducing heat input and distortion. Perfect for professional welders seeking reliability and versatility in AC/DC applications.
Key Specifications
| Specification | Details |
|---|---|
| Power Output | 230 A (1-phase 230 V) |
| Voltage Compatibility | 110 / 240 V ¡À10% (50/60 Hz) |
| Torch | TX225G8 Gas-cooled 8m TIG torch |
| Weight | 19.1 kg (no accessories) |
| Operating Temp Range | -20¡+40 ¡ãC |
| Generator Requirement | Min. 8 kVA |
| Stick Electrode Sizes | 1.6¡5.0 mm |
| Protection Class | IP23S |
| Regulator | Harris 601 Argon Regulator (0-30 LPM) |
| Standard Compliance | IEC 60974, AS 60974.1-2006 |
Core Features & Benefits
- Double Pulse Technology: 30% faster welding speed and 20% reduced heat input, minimizing distortion and costs.
- Optima AC Waveform: Customizable AC TIG waves (sine, square, Optima) for optimal aluminum and non-ferrous welding.
- MicroTack Function: Precise, low-heat tacking for thin sheets with 1-5 repeat pulses or continuous mode.
- iTEC Ignition: Reliable arc starts for long torch extensions and low-current applications.
- Modular Design: Upgrade with wireless remotes or transport carts to fit your workflow.
Applications
Ideal for automotive repair, aerospace, manufacturing, and metal fabrication. Suitable for aluminum, stainless steel, and carbon steel welding. Generator-compatible for on-site flexibility.
What’s Included
- MT235ACDCGMAU power source
- MTP35X Control panel

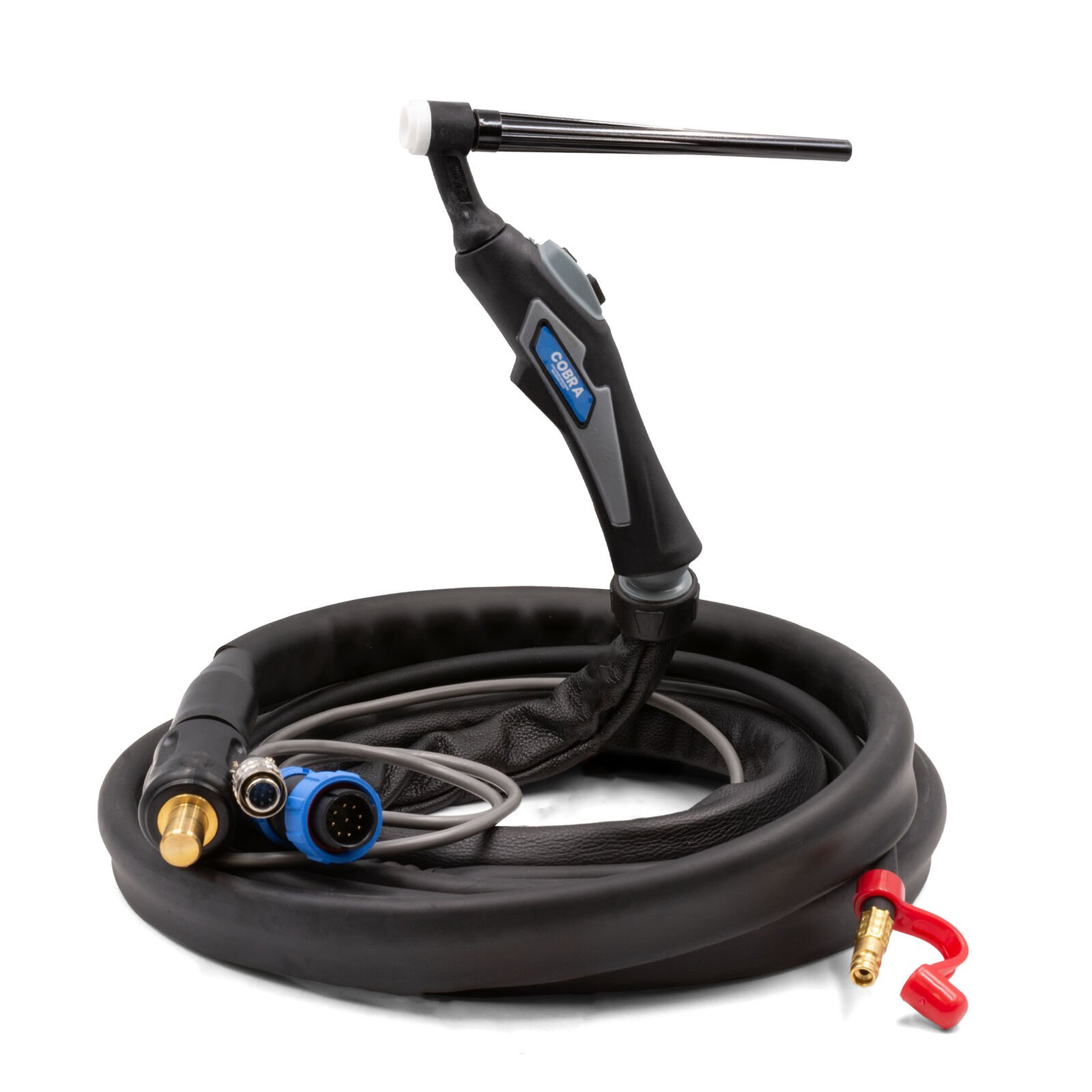

- TX225G8 8m gas-cooled TIG torch
- 5m 35mm2 earth cable
- Harris 601 Argon Regulator (0-30 LPM)
Quality & Warranty
Built with impact-resistant plastic and Flexlite TX torches for durability. European-made regulator includes a 5-year warranty. Complies with global safety standards (IEC, AS).
FAQ
Q: Is this suitable for aluminum welding?
A: Yes, Optima AC waveform ensures superior aluminum welding results.
Q: Can it run on a generator?
A: Requires a minimum 8 kVA generator for stable operation.
Q: What materials can I weld?
A: Stainless steel, carbon steel, aluminum, and non-ferrous metals.
Ready to elevate your welding projects? Contact us today for a quote or technical support!
