HJC40 Welding Gauge Fillet Bevel Angle Gap Undercut Inspection Tool
$49.00
Product Introduction

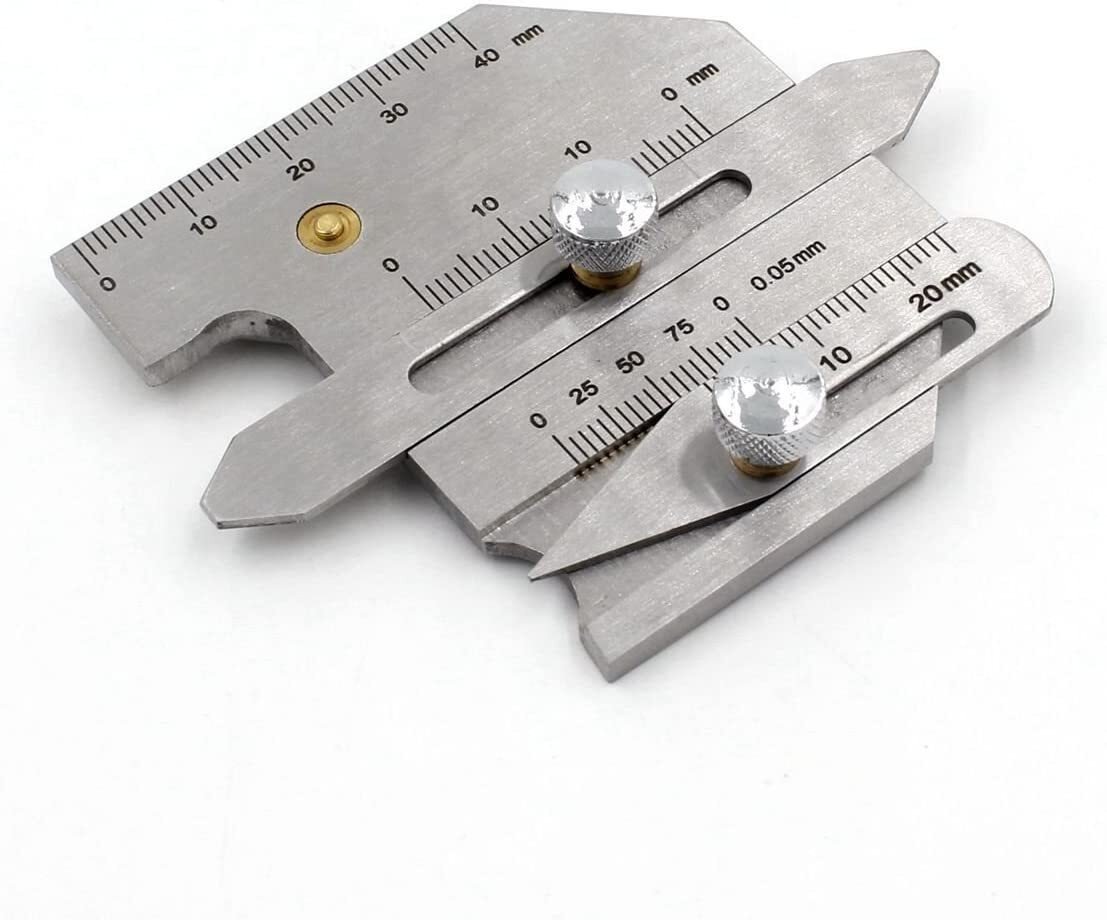

The HJC40 Welding Gauge is a versatile inspection tool for measuring fillet, bevel angle, gap size, undercut, and other weldment parameters. Made of stainless steel with laser engraving scales, it ensures durability and easy reading, ideal for welding quality inspection.
Product Parameters
| Weight | 144g |
| Measuring Range | Crown Height: 0-10mm; Width: 0-40mm; Undercut Depth: 0-5mm; Fillet Height: 0-12mm; Bevel Angle: ¡Ü150¡ã |
| Material | Stainless Steel |
| Box Size | 98mm x 76mm x 23mm |
HJC40 Welding Gauge – Precision Welding Inspection Tool for Accurate Measurements
Ensure flawless weld quality with the HJC40 Universal Welding Gauge, a must-have tool for professional welders, inspectors, and quality control teams. Engineered to measure critical weld parameters with precision, this gauge simplifies inspection processes and guarantees compliance with industry standards. Whether you¡¯re working on fillet welds, bevel angles, or gap sizes, the HJC40 delivers reliable results to elevate your welding projects.
Core Parameters
| Parameter | Specification |
|---|---|
| Product Name | Universal Welding Gauge HJC40 |
| Weight | 144g |
| Crown Height Range | 0-10mm |
| Width Range | 0-40mm |
| Undercut Depth Range | 0-5mm |
| Fillet Height Range | 0-12mm |
| Fillet Thickness Range | 0-15mm |

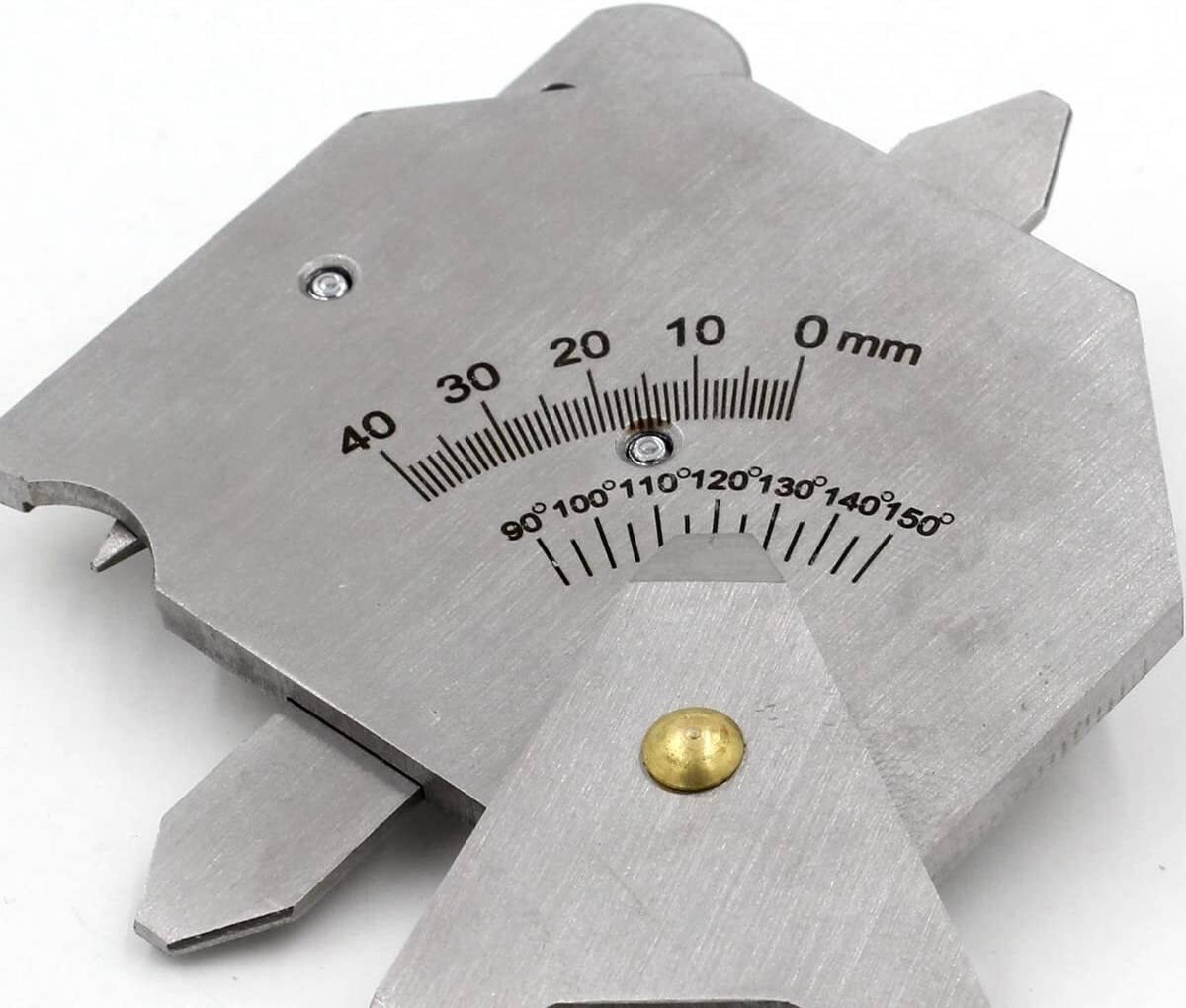

| Bevel Angle Capacity | ¡Ü150¡ã |
| Gap Size Range | 0.5-5mm |
| Material | Stainless Steel |
Key Features
- Stainless Steel Construction: Sturdy and durable, built to withstand harsh workshop environments.

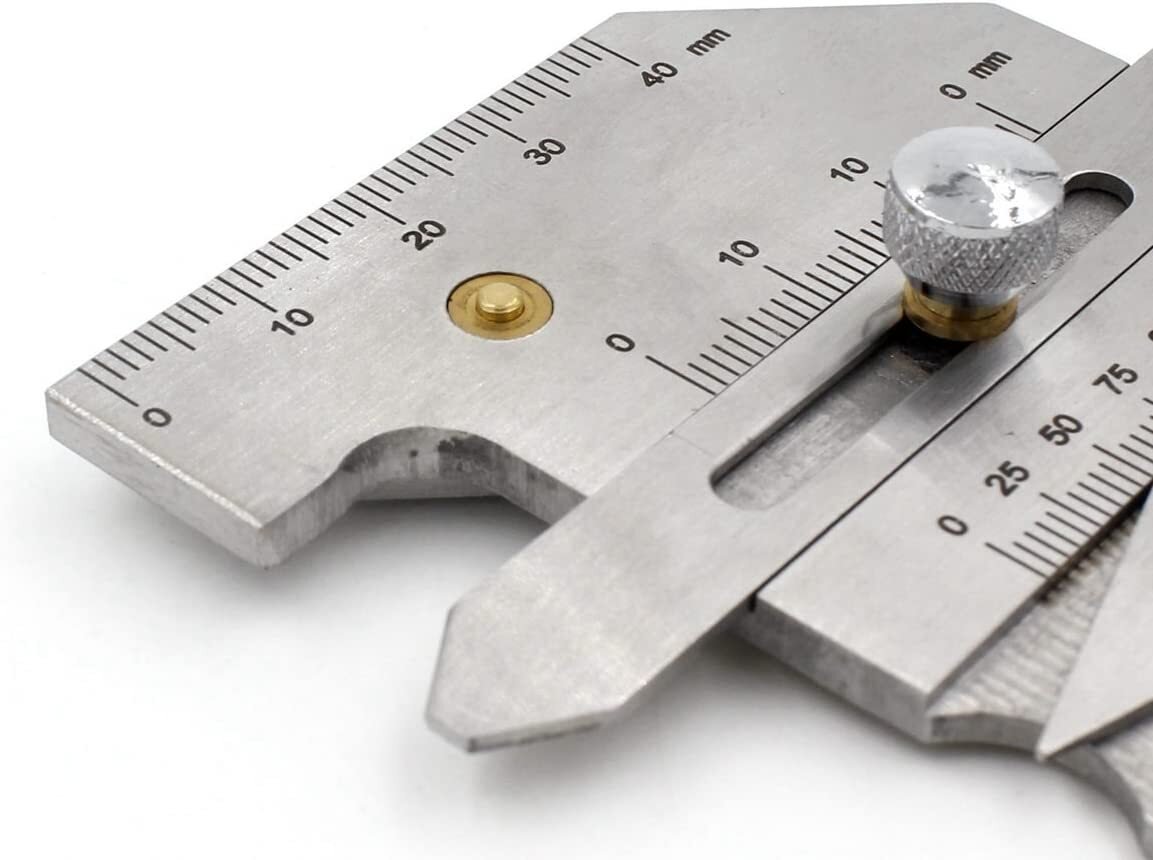

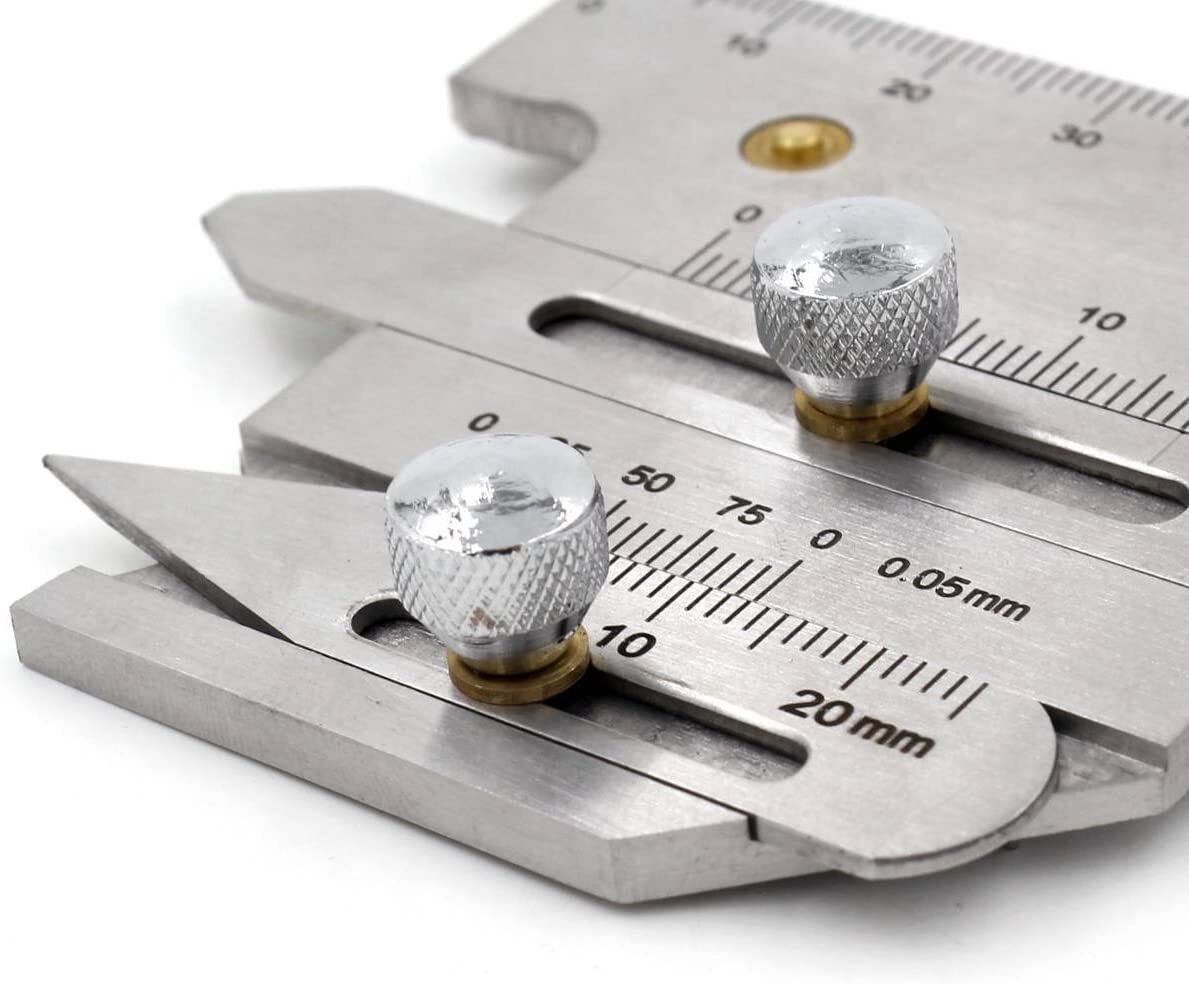

- Laser Engraved Scales: Clear, wear-resistant markings ensure easy reading and long-term accuracy.
- Multi-Functional Design: Measures groove angles, heights, widths, clearances, and undercut depths in one tool.
- Highly Polished Finish: Deburred edges for smooth operation and user safety.

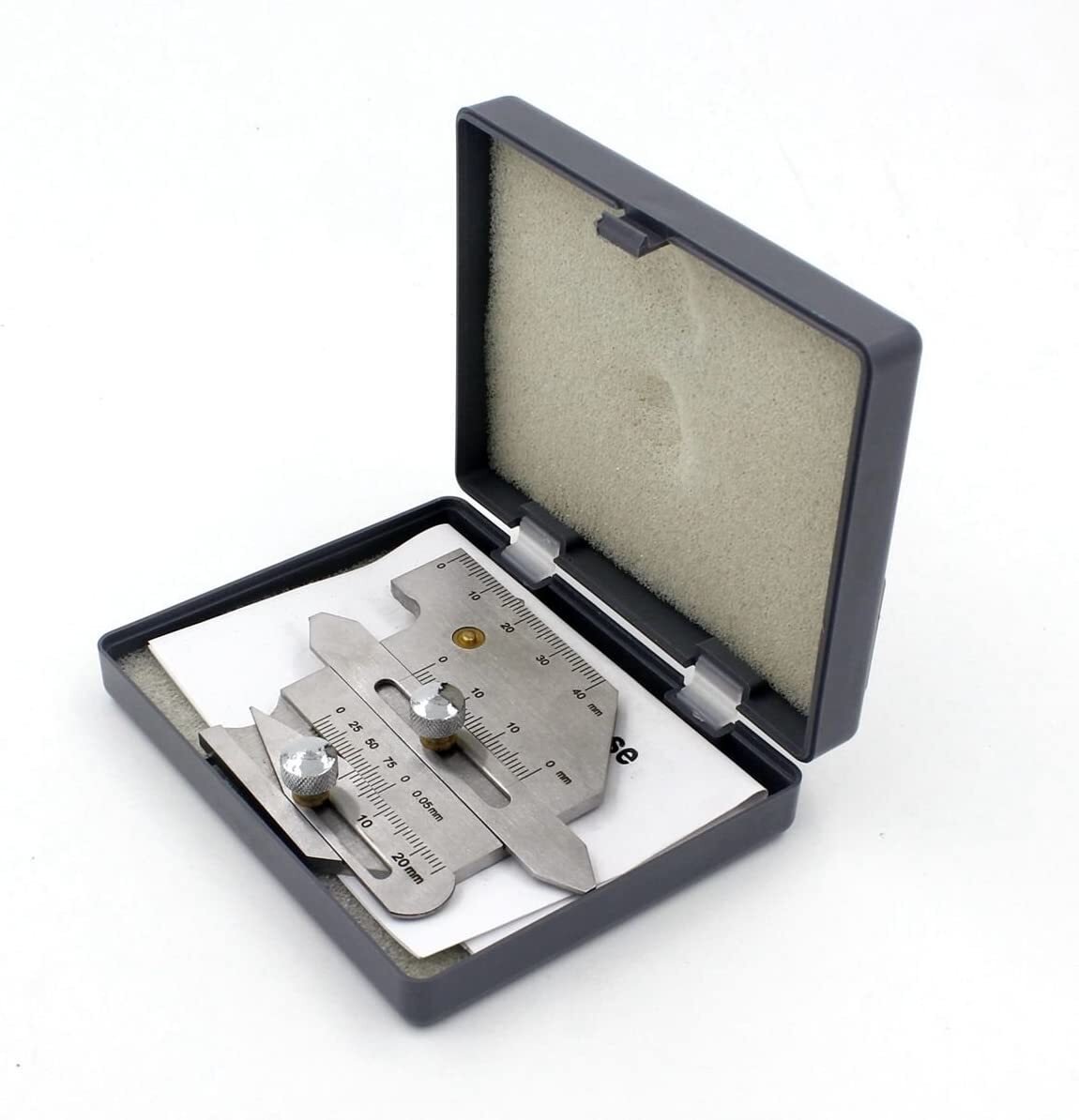

- Portable Plastic Case: Convenient storage and transport (98mm x 76mm x 23mm).
Applications
Ideal for welding inspection in industries such as construction, automotive, manufacturing, shipbuilding, and oil & gas. Perfect for checking fillet welds, bevel angles, root gaps, and undercut depths during quality control checks or post-weld verification.
Performance & Quality
Cobra high-quality craftsmanship ensures consistent performance. The precision-engineered components and laser-etched scales provide accurate measurements, reducing errors and rework. Backed by our reputation as a leading welding equipment manufacturer, the HJC40 meets strict quality standards for reliable use in professional settings.
Why Choose HJC40?
Unlike generic gauges, the HJC40 offers a comprehensive measurement range (0-40mm width, 0-15mm fillet thickness) and durable stainless steel build, outperforming plastic or low-grade alternatives. Its all-in-one design eliminates the need for multiple tools, saving time and improving workflow efficiency.
FAQ
Q: What measurements can the HJC40 perform?
A: It measures crown height, width, undercut depth, fillet height/thickness, bevel angle (¡Ü150¡ã), and gap size (0.5-5mm).
Q: Is the gauge suitable for outdoor use?
A: Yes, the stainless steel construction resists corrosion, making it suitable for both indoor and outdoor welding environments.
Q: How accurate is the laser engraving?
A: Laser engraving ensures high precision and resistance to wear, maintaining readability over extended use.
Ready to enhance your welding inspection process? Contact us today for bulk pricing, technical support, or custom requirements. Our team of experts is here to help you find the perfect tools for your projects.
