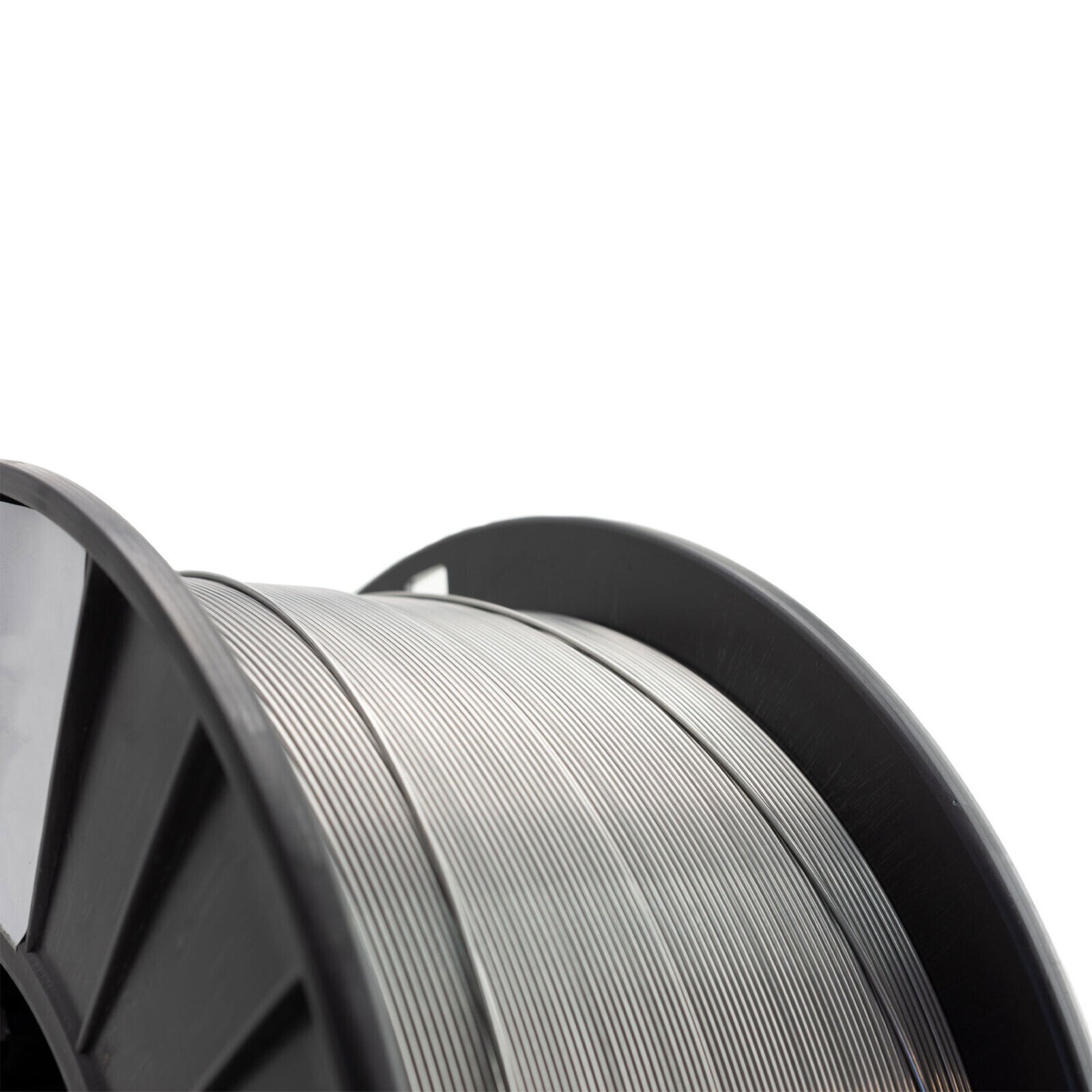

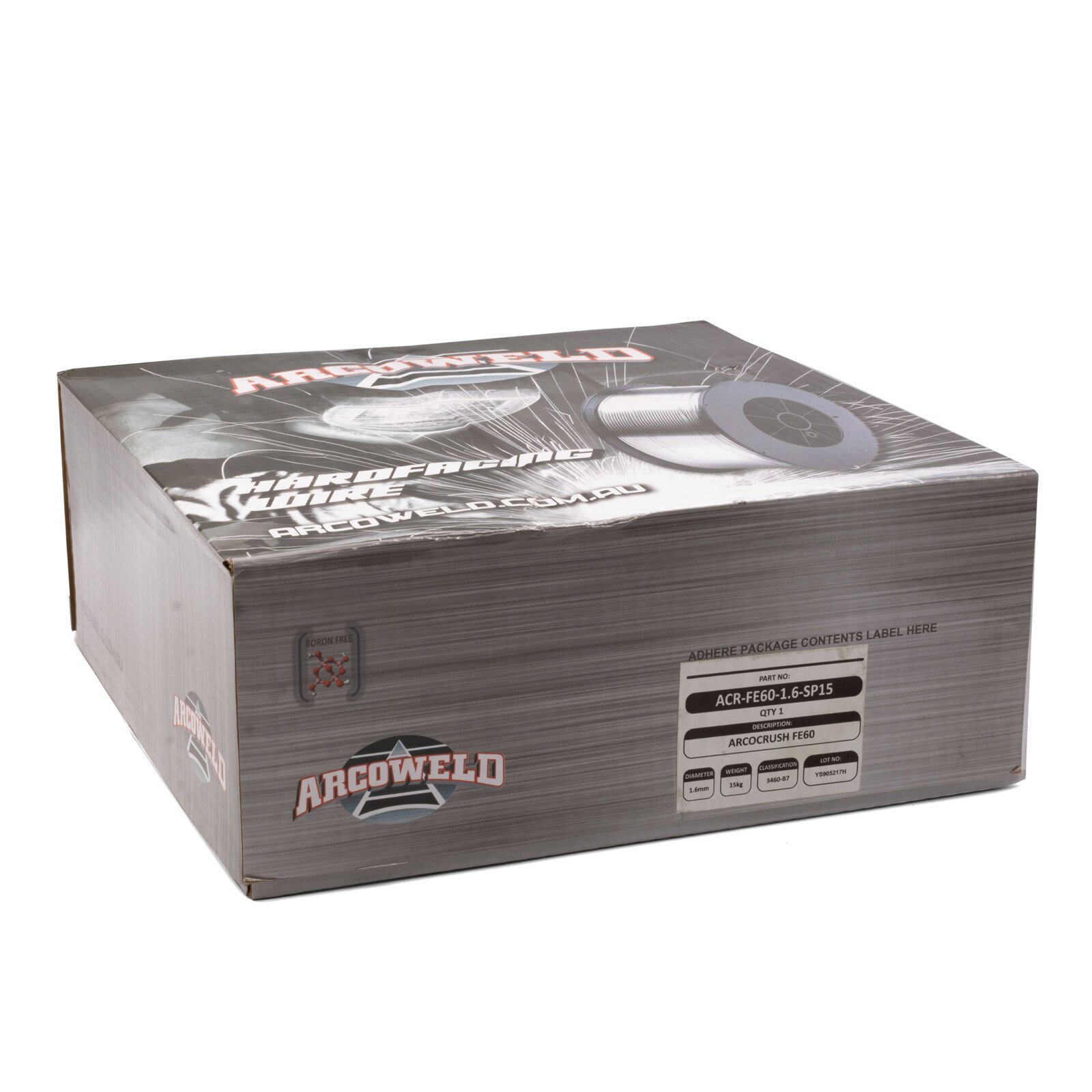

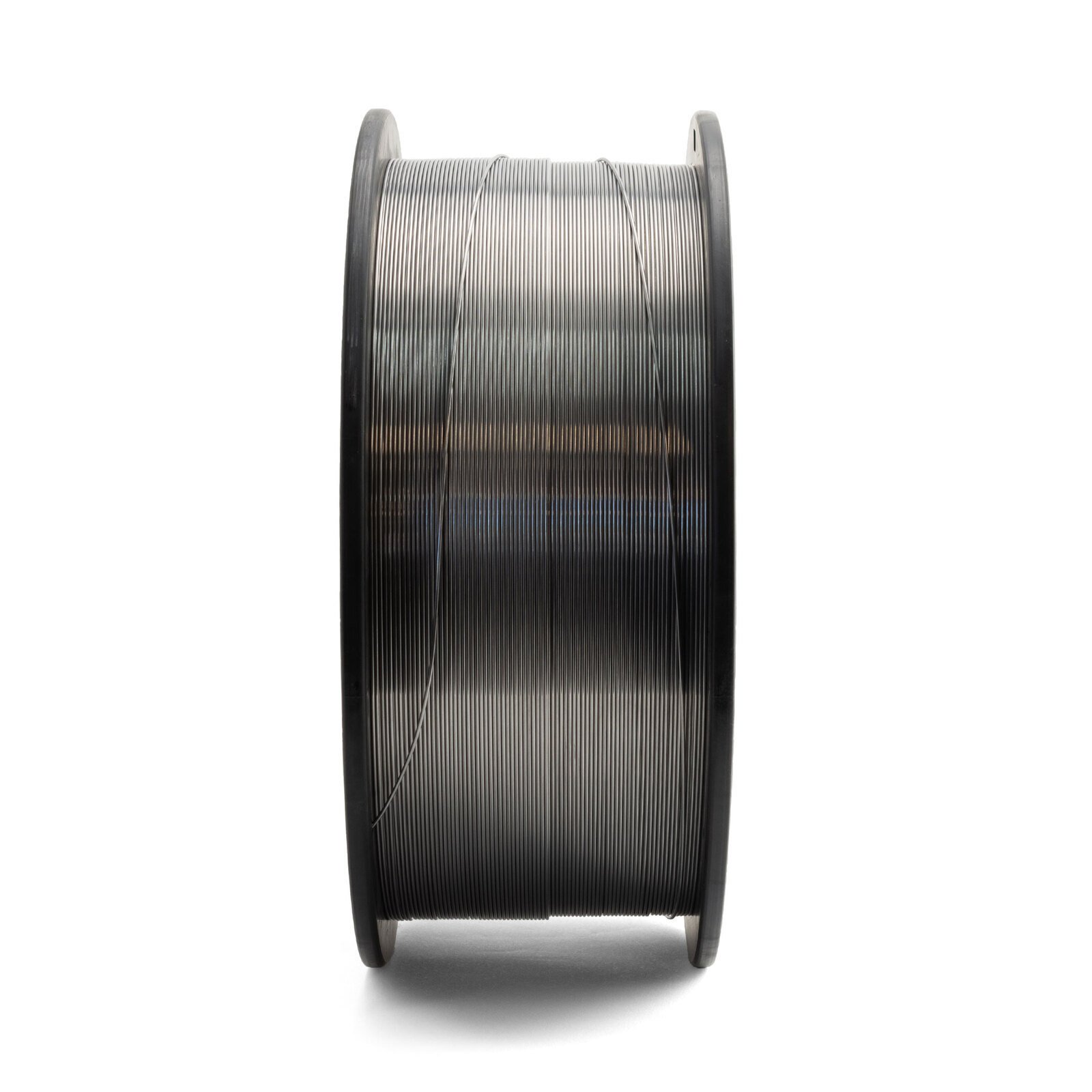

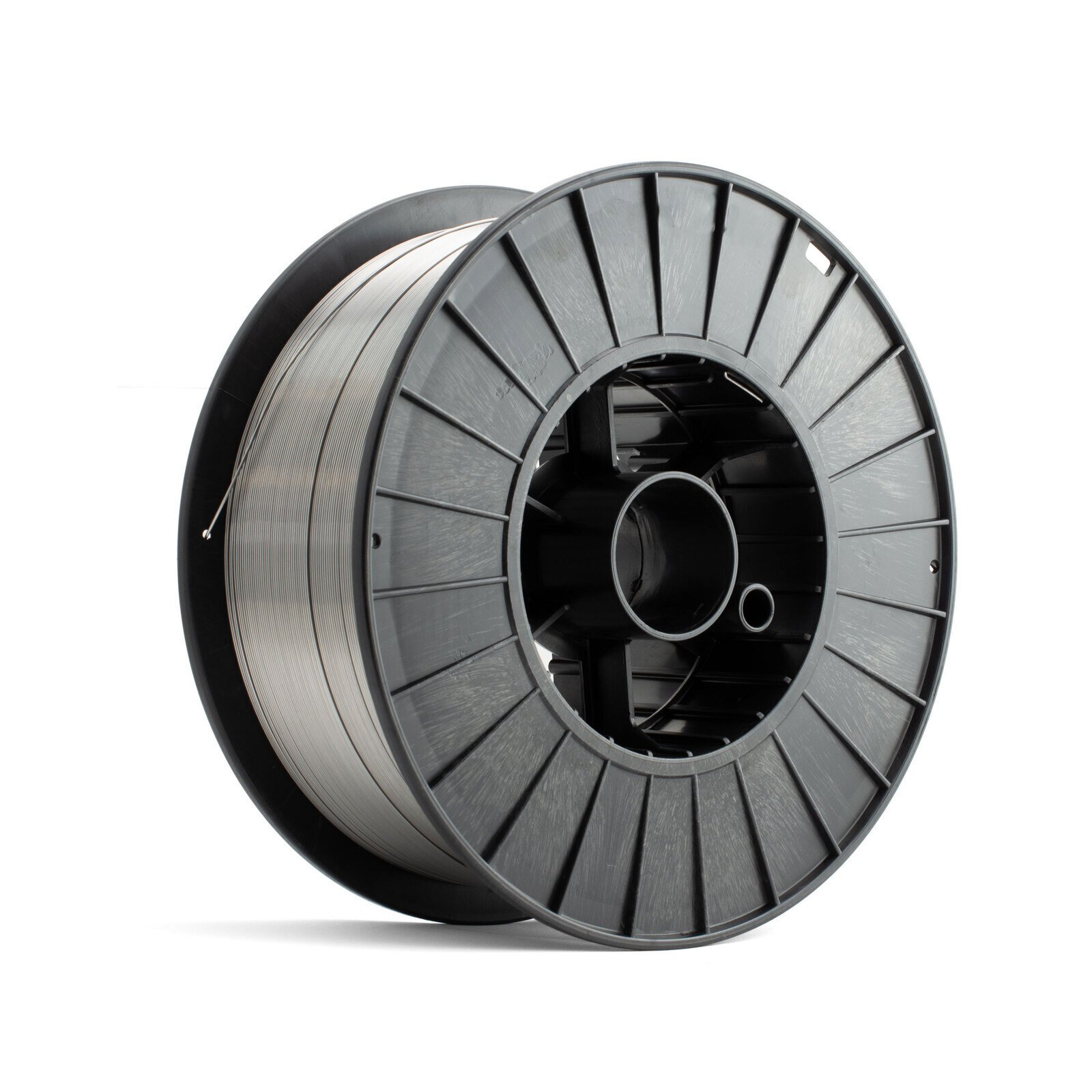

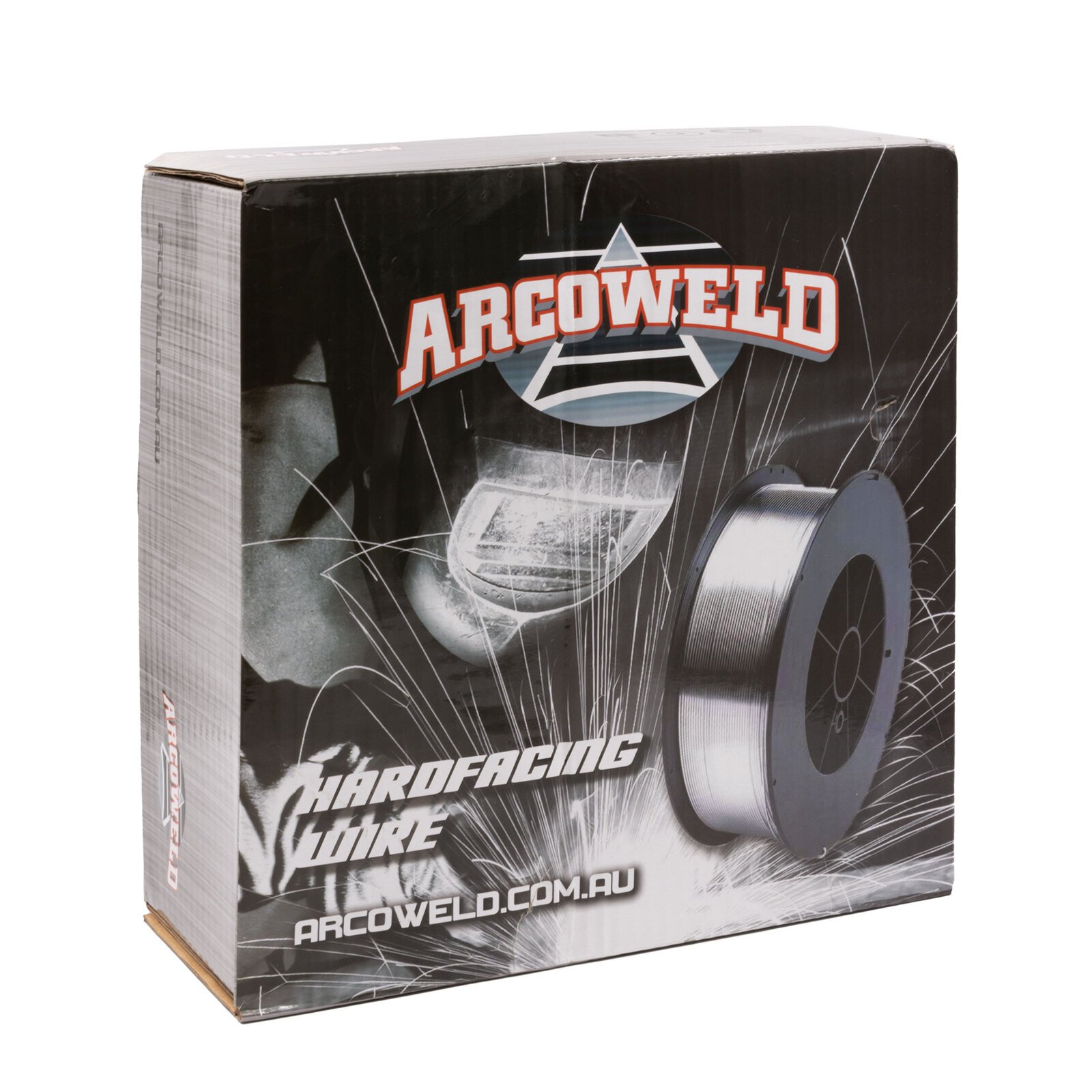

15kg 1.6mm ArcoCrush FE60-SS Gasless Hardfacing MIG Wire
$690.00
Product Description
ArcoCrush FE60-SS is a self-shielded, gasless hardfacing MIG wire spool designed for extreme abrasion resistance up to 250oC. Ideal for mining, earthmoving, agricultural, and industrial wear components, it features 60% Fused Tungsten Carbide particles in a Martensitic steel matrix, ensuring durability with minimal heat input.
Specifications
| Weight | 15kg |
| Wire Diameter | 1.6mm |
| Hardness | 60 HRc (2 layer) |
| Type | Self Shielded Flux Cored |
| Part No | ACR-FE60SS-1.6-SP15 |
15kg – 1.6mm ArcoCrush FE60-SS Gasless Hardfacing MIG Wire: Extreme Abrasion Resistance for Heavy-Duty Applications
Product Overview
Engineered for Australian industrial wear management, ArcoCrush FE60-SS is a self-shielded flux-cored hardfacing wire designed to deliver superior abrasion resistance in high-stress environments up to 250¡ãC. With 60% Fused Tungsten Carbide (FTC) particles embedded in a martensitic steel matrix, this 1.6mm wire ensures long-lasting protection for critical equipment components.
Core Specifications
| Weight | 15kg Spool |
| Wire Diameter | 1.6mm |
| Hardness | 60 HRc (2-layer), 627 HB-2350 HV |
| Carbide Content | 60% Fused Tungsten Carbide (FTC) |
| Shielding | Self-Shielded (Gasless) |
| Classification | AS/NZS 2576-2005, 3460-B7 |
| Part Number | ACR-FE60SS-1.6-SP15 |
| Max Operating Temp | 250¡ãC |
| Layer Limit | 2 Layers Maximum |
| Polarity | DCEP (Direct Current Electrode Positive) |
Key Benefits
- Extreme Abrasion Resistance: 60% FTC particles maintain hardness during welding for unmatched wear protection
- Gasless Operation: Eliminates shielding gas requirements for on-site convenience
- High-Temp Stability: Reliable performance in applications up to 250¡ãC
- Easy Application: Fine carbide distribution ensures uniform weld bead integrity
- Cost-Effective: Reduces equipment downtime through extended component lifespan
Applications
Ideal for low-impact crushing components, mining equipment, earthmoving tools (bucket lips, rippers), agricultural machinery, pump impellers, slurry pipework, and wear plate cladding. Perfect for mobile or stationary industrial applications requiring superior wear resistance.
Performance Advantage
Unlike standard hardfacing wires, ArcoCrush FE60-SS preserves carbide particle integrity through minimal heat input, ensuring optimal hardness retention. Its martensitic steel matrix provides excellent bonding strength while allowing controlled relief checking during post-weld cooling.
Quality Assurance
Manufactured to AS/NZS 2576-2005 standards, equivalent to Talarc Postalloy 299-SPL and Lincoln STAINCARB W-O. Each spool undergoes rigorous quality control to ensure consistent performance and particle distribution.
FAQ
Q: Can this wire be machined after welding?
A: No, the weld deposit is non-machinable due to high carbide content.
Q: What causes dark surface appearance during welding?
A: Darkening indicates overheating; reduce amperage to preserve carbide integrity.
Q: Is preheating required?
A: Consult technical data sheet for base material-specific preheating recommendations.
Request a Quote
Optimize your equipment’s wear resistance with ArcoCrush FE60-SS. Contact our technical team today for personalized pricing and application guidance tailored to your industrial needs.
