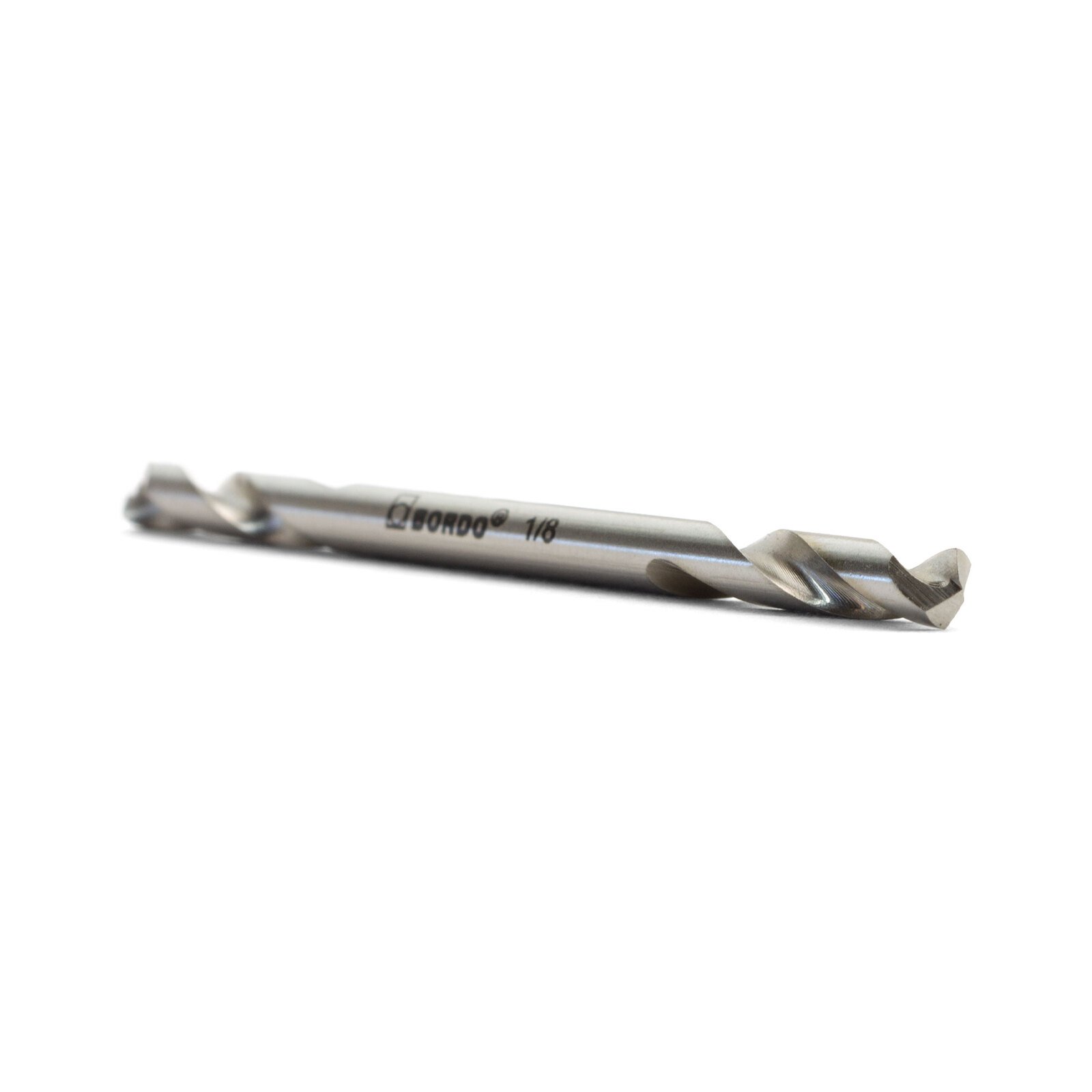

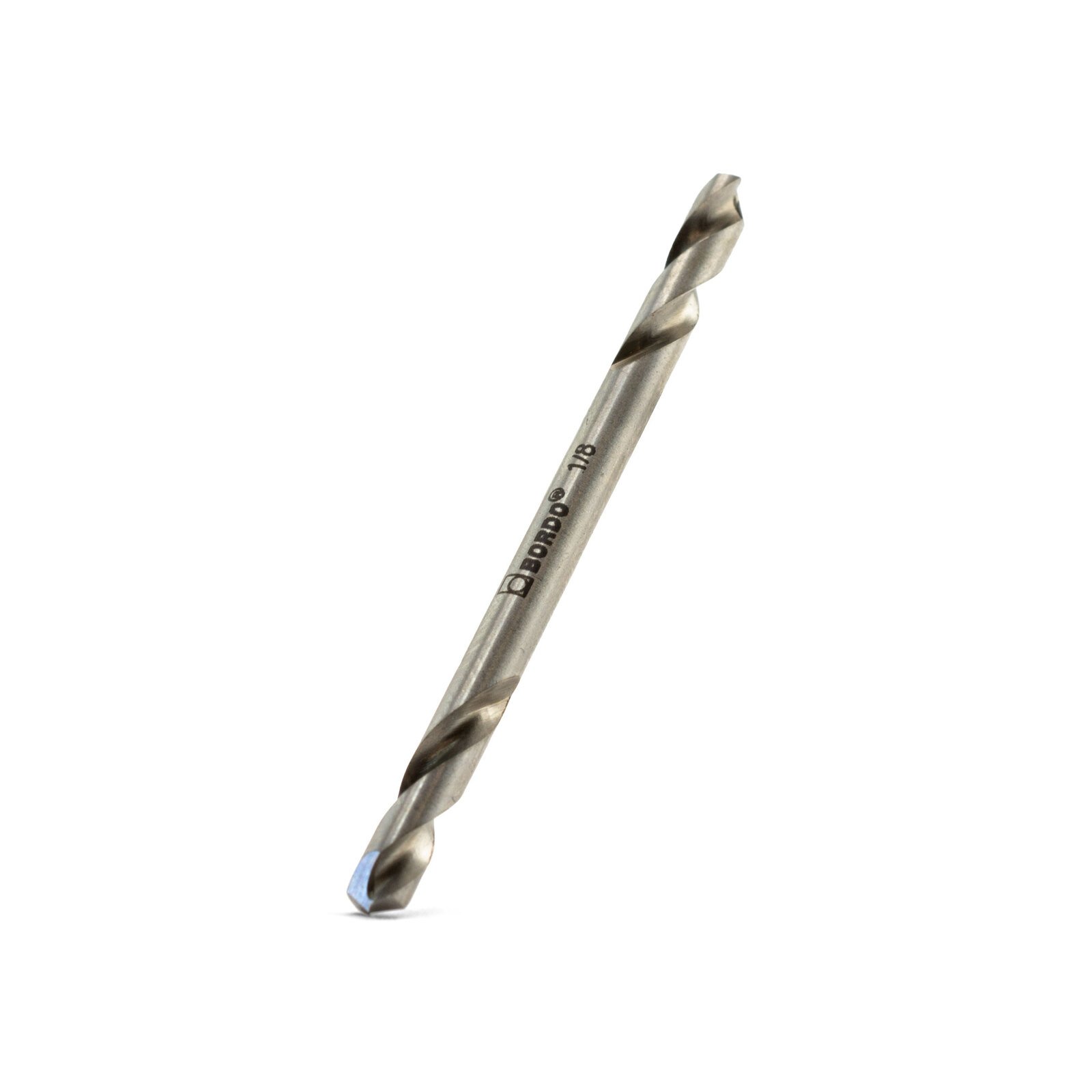

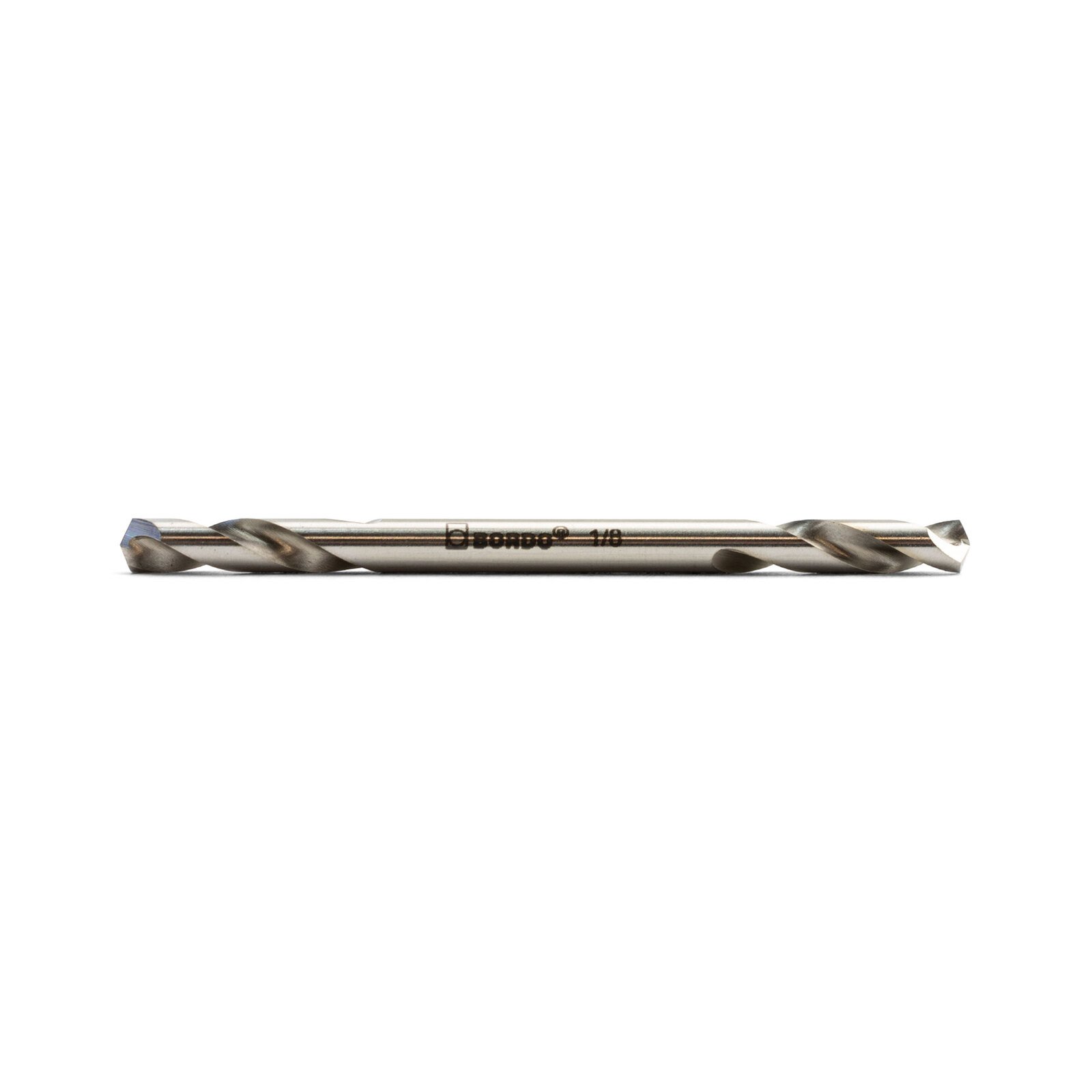

1/8 Bright Double Ended Panel Drill 10 Each
$49.00
Product Description
A 1/8″ bright double-ended panel drill with 135¡ã split point for self-centering, ideal for 3mm rivets. Features fast penetration, reduced friction, and is suitable for general purpose, especially non-ferrous applications.
Specifications
| Drill Diameter | 3.17mm (1/8″) |
| Overall Length | 51mm |
| Effective Length | 14mm |
| Point Angle | 135¡ã |
| Finish | Bright (As-ground) |
1/8 Bright Double Ended Panel Drill (10 Each) – Precision Drilling for Rivet Applications
Effortlessly drill precise holes for 3mm rivets with our 1/8″ Bright Double Ended Panel Drill. Engineered for efficiency and durability, this high-performance drill bit set delivers superior results in metalworking and fabrication tasks. Perfect for professionals seeking reliable tools that minimize work hardening and maximize penetration speed.
Core Specifications
| Drill Diameter | 1/8″ (3.17mm) |
| Rivet Compatibility | 3mm Rivets |
| Point Angle | 135o Split Point (Crankshaft Point) |
| Finish | Bright (As-Ground, No Surface Treatment) |
| Effective Length | 14mm |
| Overall Length | 51mm |
| Self-Centering | Yes |
| Material Suitability | Hard Steel, Non-Ferrous Metals |
| Pack Quantity | 10 Each |
| Application | General Purpose, Panel Drilling |
Key Benefits
- Self-Centering 135o Split Point: Eliminates the need for pre-punching, reducing end thrust and ensuring accurate hole placement.
- Superior Hard Steel Performance: Optimized point geometry delivers faster penetration and reduced friction in tough materials.
- Minimized Work Hardening: Produces thicker chips to prevent material hardening, extending tool life.
- Bright Finish: As-ground surface ideal for non-ferrous applications and general-purpose drilling.
- Double-Ended Design: Extends usability with two cutting edges, maximizing value per bit.
Applications
Ideal for automotive fabrication, metal panel assembly, HVAC installation, and general industrial manufacturing. Perfect for drilling precise holes in steel, aluminum, and other non-ferrous metals when working with 3mm rivets.
Quality Assurance
Manufactured to strict industry standards, our panel drills undergo rigorous testing to ensure consistent performance and durability. Each bit is ground to precise tolerances for reliable results in professional environments.
Why Choose Our Drill Bits?
Unlike standard drills, our 135o split point design reduces drill walking and improves chip evacuation, while the bright finish offers versatility across materials. The 10-piece pack provides excellent value for high-volume applications.
FAQ
Q: What rivet size does this drill accommodate?
A: Specifically designed for 3mm rivets (1/8″ drill diameter).
Q: Can this drill be used on stainless steel?
A: Yes, the 135o point is optimized for harder steel materials.
Q: Is lubrication required?
A: Recommended for extended tool life, especially in high-speed applications.
